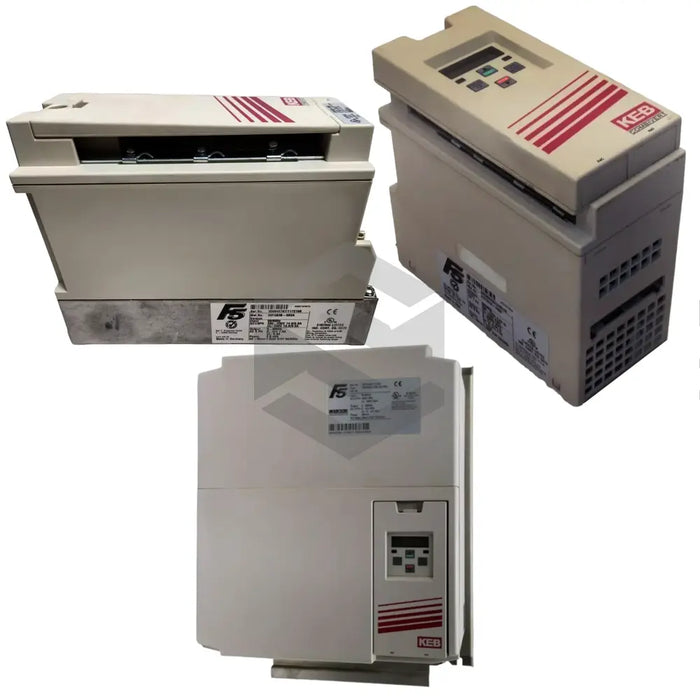

07.F5.C1B-2B0A
by KEB
The 07.F5.C1B-2B0A axis drive from KEB is part of the highly regarded F5 Combivert Axis Drives series. This precision drive is engineered with a 0.75 kW power rating and a nominal current of 4 A to deliver reliable performance in demanding environments. Its design emphasizes consistent motion control through a high 16 kHz switching frequency, which minimizes torque ripple and improves the overall quality of operation. The drive is ideally suited for industrial applications requiring reliable motion control and accurate positioning in automation and process control systems.
In technical terms, the drive features a 3-phase 230 V connection type, ensuring robust electrical performance in standard industrial environments. With a current maximum of 8.6 A, the unit not only supports heavy starting loads but also offers enhanced operational resilience. The inclusion of EN 61800-3 emitted interference standards further guarantees minimal electrical noise interference during operation. Additionally, the drive is housed in an enclosure with IP 20 / VBG 4 protection and has a compact B size, making it easy to integrate into a variety of machine layouts while ensuring safety and durability.
Beyond its primary specifications, the drive is further distinguished by a range of practical technical features. It operates efficiently across an operating temperature span of -10 to 45 00B0C, and its design permits potential-free operator connection for greater flexibility. With provisions for 8 digital, 4 software programmable inputs and additional programmable outputs, the drive offers versatile interfacing options. Built in adherence to EN 61800-2, EN 61800-5-1 product standards and equipped with short-circuit & earth fault monitoring, this axis drive is a robust solution that meets the rigorous demands of modern industrial applications while ensuring operational safety and system reliability.
