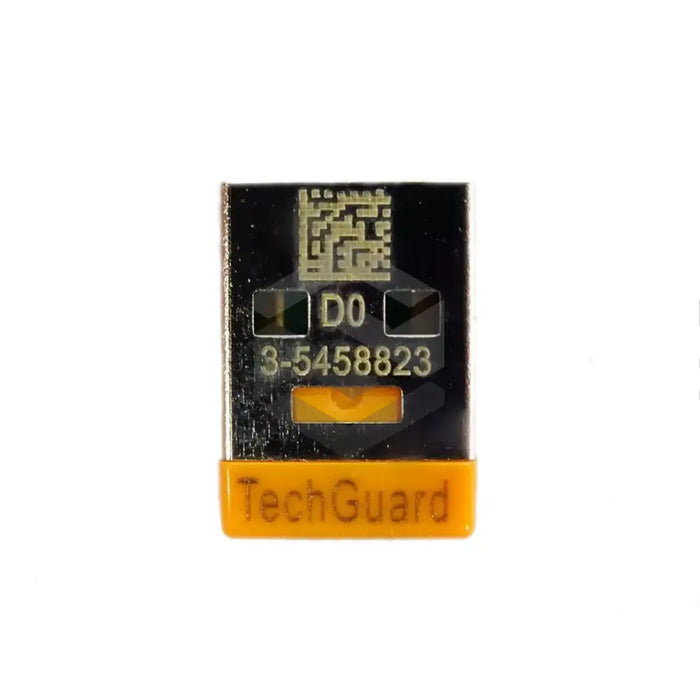

S image of 0TG1000.01

0TG1000.01

by B & R Automation
$472.59 - $573.66
$472.59
$472.59 - $573.66
$472.59

In Stock, Ships Fast

The B&R Automation Technology Guard 0TG1000.01 is a high-performance mass storage device essential for industrial data management and security. It functions like a USB drive with added benefits for industrial applications, specifically supporting B&R license management. Certified for high-speed USB 2.0 and compatible with 1.1, it allows quick data transfer while ensuring data security with AES-128, SHA-256, RSA-2048, and ECC-224 encryption. The device has a data retention life of up to 10 years and manages up to 10 million license updates with an MTBF of more than 3 million hours. Operating with a 5 V power supply and minimal power consumption, it holds 241 bytes for custom application memory. Certified by CE, UKCA, UL, and other standards, it supports hazardous location usage. It reliably operates between -25°C and 85°C in up to 95% non-condensing humidity. Its compact dimensions enhance its adaptability for various industrial setups.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product Name

B&R Technology Guard 0TG1000.01

Type

Mass Storage Device

USB Certification

High-speed USB 2.0 certified and 1.1 compatible

Security Mechanisms

128-bit AES, SHA-256, 2048-bit RSA, 224-bit ECC

Data Retention

Up to 10 years

License Updates

Up to 10 million

MTBF

Over 3 million hours

Power Supply

5 V

Power Consumption

Less than 20 mA with LEDs off, less than 60 mA with LEDs on

Application Memory

241 bytes

Erase/Write Cycles

Up to 10 million

Certifications

CE, UKCA, UL (cULus E115267), cULus HazLoc E180196, DNV, LR, ABS, BV

Compliance

Class I, Division 2, Groups ABCD, T4

Operating Temperature

-25 to 85 degrees C

Humidity

5 to 95% (non-condensing)

Dimensions

12 mm width, 16.7 mm length, 4.5 mm height

Environmental Suitability

Various environmental conditions

Access Library

AsGuard
