1006-2200-032-003
by Okuma

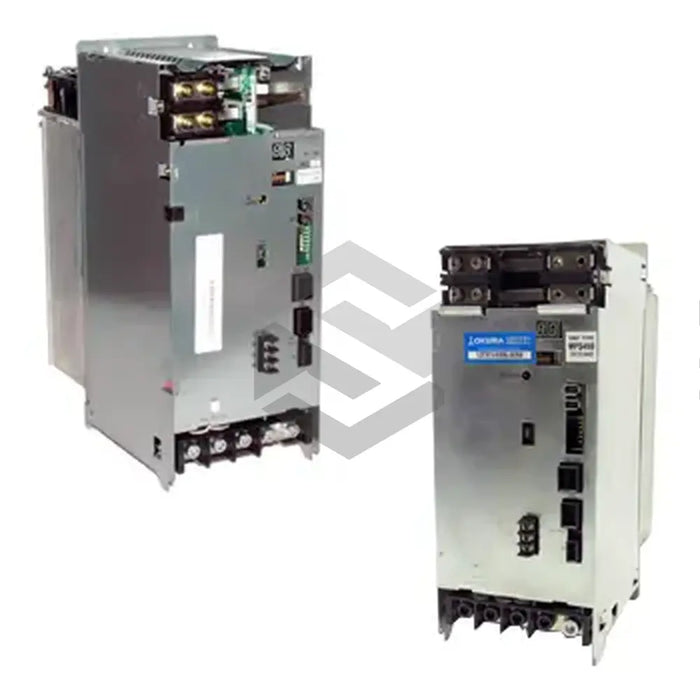

Produced by industry leader Okuma, model 1006-2200-032-003 (MPS10) is a high-quality, energy-saving Direct Current (DC) power supply module, recognized for its excellent power supply abilities. Part of the MSC product family, this module is renowned for its reliable and efficient operation, featuring a 7-segment status display LED on its front for easy monitoring of errors, faults, and overall operational status. The module can generate a DC power supply ranging between 24 and 300VDC, connected to the Machine Control Unit (MII). Using a converter link, it aids communication between the power unit and the MII module. Designed for power regeneration, it suits system drives with a spindle drive motor, and can connect to a three-phase AC power source through an electromagnetic contactor and AC reactor.
Excluding accessories and mounting kits, the 1006-2200-032-003 (MPS10) model weighs 7.7 kg and has a 10 kW or 13 hp capacity. A heat sink helps manage temperature, with additional support from both exterior and interior cooling fans. A DC bus charged status indicator and a control board are placed within the module to help manage control operations. The module requires installation within a control cabinet of a minimum IP54 protection level and can connect to multiple MII units. This MPS unit, model 1006-2200-032-003 (MPS10), can be purchased from Servo Supplier.
