1006-2201-017-041
by Okuma

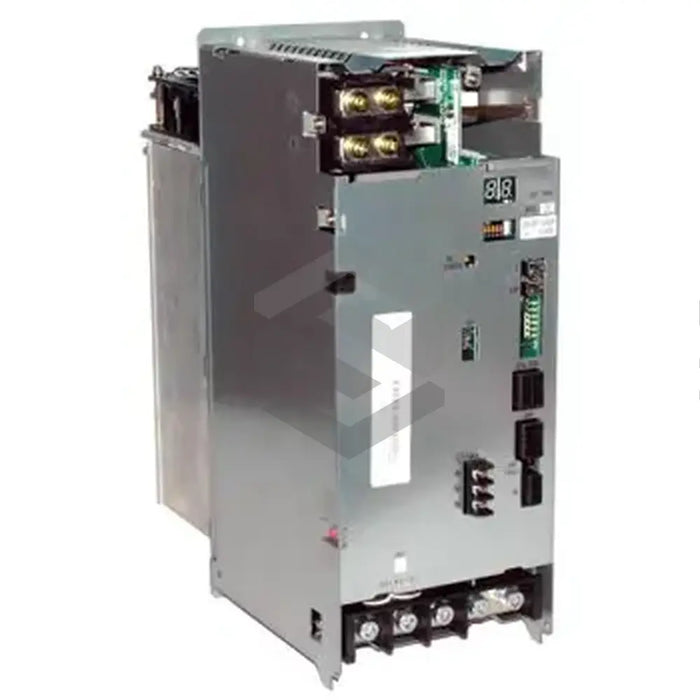

This piece highlights the 1006-2201-017-041 (MPS20) power regeneration supply module, designed and manufactured by Okuma. As a trusted creator of cost-efficient industrial automation equipment, Okuma integrates advanced technology, including DC power supply modules, inverter units, and main filters. This particular model is constructed for broad industrial applications in contexts where main spindle motors are required. It takes 3-phase power and repurposes it into 24 – 300 VDC power, facilitating the functioning of MIV modules. A distinctive feature is that multiple MIV modules can be synchronized with a single MPS supply unit. Communication is ensured by a converter link.
The 1006-2201-017-041 (MPS20) model's unit capacity stands at 20 kW, with an overall weight of 11.8 kg, excluding accessories. It's designed to be combined only with company-approved parts and modules. Despite its compact design (dimensions of 380 × 150 × 325), this model is highly robust. It's important to note that operational expertise should be carried out by qualified professionals. The device boasts various indicators such as a 7-segment LED, a DC bus charged status, and a power error indicator. Notably, it's part of the MSC series products and relies on L- and L+ terminals to supply DC power. Prescribed operating conditions must be adhered to, with an integrated cooling fan managing the internal temperature. The model is also conditioned for humidity-resilient performance.
