1006-2215-0421014
by Okuma

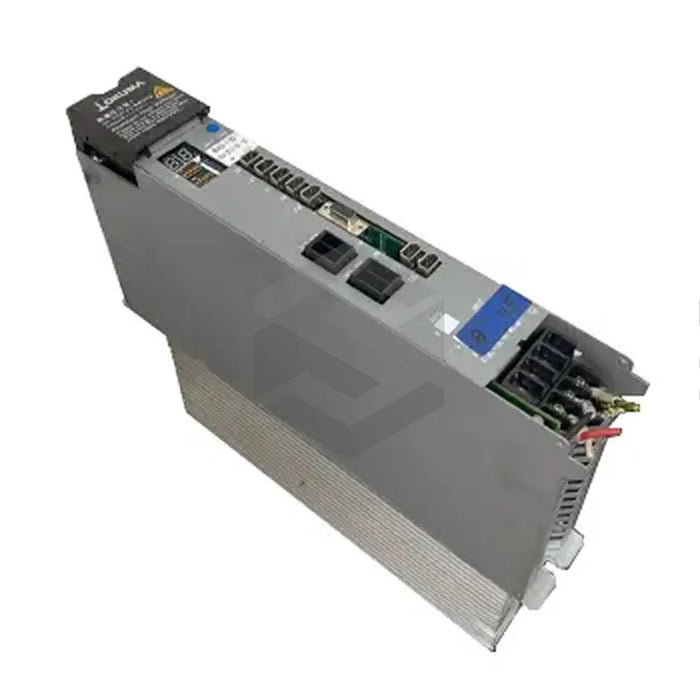

The Okuma 1006-2215-0421014 (MIV05-1-B5) is an inverter unit designed to power and control spindle motors and axis drive motors. Running on a DC power supply, it provides 300 Volts DC and 24 Volts DC control power. Communication with peripherals is achieved via the servo link, encoder link, and converter link. The integral control board enables effective motor control and the line side capacity of this unit is 5 kilowatts. Suitable for use with both BL and PREX motors, this unit operates using a ROM control type of 5. Identification markings may either be a seal or printed, and the unit type should match when ordering replacements.
Boasting a heat sink for optimal heat dissipation, the 1006-2215-0421014 (MIV05-1-B5) also features a 7-segment LED to display operational status. The modes include normal operation and alarm status display. In case of any errors, the error number is displayed. For servo links, the FCP board acts as the master station while the MIV units function as slave stations. Lastly, controller ID setting is facilitated by a 5-bit switch on the inverter unit. With an approximate weight of 5.7 kilograms, the unit measures 380 x 60 x 325 millimetres. A protective, dust-free and waterproof housing is recommended, along with suitable protection devices like fuses or circuit breakers for short-circuit protection.
