1006-2221-003-001
by Okuma

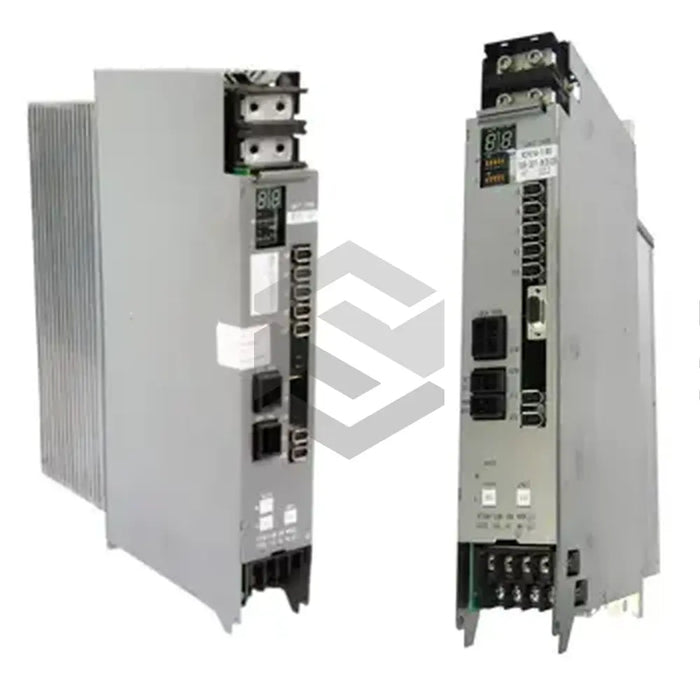

The 1006-2221-003-001 (MIV22-1-B1) is an inverter system manufactured by Okuma, capable of a rated continuous output of 22 kilowatts or 30 Horsepower. Its approximate weight rests at 11.2 kilograms, with dimensions roughly measuring at 380 x 150 x 325 millimeters. On the front panel, there are two terminal blocks- the XT1 with four termination points, and XT2 with five, both requiring M6 size screws for wiring termination. Also present on the front panel, for convenient monitoring of operation status, is a 7-segment LED display which showcases error codes for easier troubleshooting. Additionally, a 5-bit switch is provided for assigning a unique controller ID to each unit.
The unit operates on a 300 Volts DC power input from an Okuma power supply that takes in a 200 Volts AC input. The power supply also offers a separate 24 Volts DC input for the inverter's control electronics. Precautions include disconnecting the power input before making any connections and allowing ample time for the inverter to discharge before performing maintenance. Possessing an ICB1 control unit in its system, enabling control of BL and PREX series motors, the 1006-2221-003-001 (MIV22-1-B1) has a control ROM of type 1. The installation should be carried out by trained experts for optimal results.
