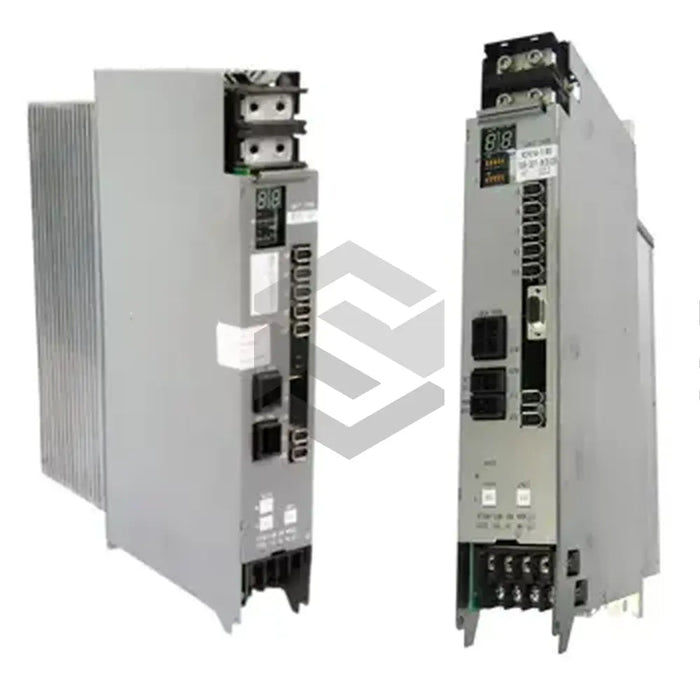

1006-2266-005-034
by Okuma
The 1006-2266-005-034 (MIV08DB-1-B3) is a high-quality inverter produced by the renowned manufacturer, Okuma. Primarily compatible with spindle and axis drive motors, this unit plays an integral part in motor control, relying on an internal control board to regulate operations. It features an L side unit capacity of 8kW, and necessitates overcurrent protection measures, like a fuse or circuit breaker, to prevent any potential damage due to short circuits. To ensure safe operation, the inverter must be housed in a dustproof and waterproof electrical cabinet, thus minimizing the risk of electrical failures, injuries, or burns.
The inverter's effectiveness hinges on the accurate correction of its input and output mechanisms. Prior to its utilization, grounding is crucial, with the protective earth cable attached to the electrical cabinet. The unit interfaces with the corresponding DC power supply via the converter link and if used with a spindle drive motor, interacts with the MPS power supply. It's important to power off the unit and wait until the charge indicator light turns off before making modifications. The inverter operates with a single axis, has a continuous capacity of 7.5kW, and offers compatibility with BL series motors from Okuma. Despite its powerful features, it maintains a compact size at 380 x 100 x 325mm (H x W x D). Additionally, it allows for operation with multiple inverters from a single DC power supply. The unit is securely shipped in reliable, military-grade packaging.
