1006-2303-0539-013
by Okuma

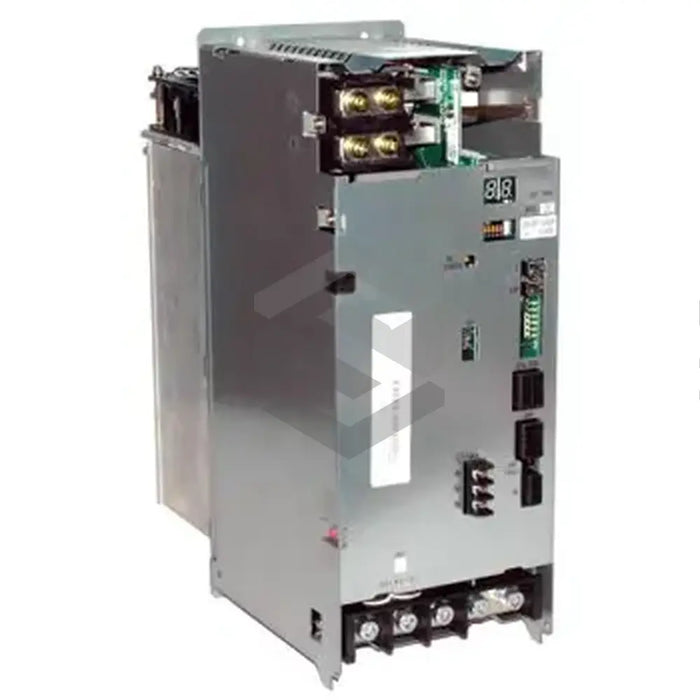

The 1006-2303-0539-013 (MPS45A) is a high-efficiency DC power supply module manufactured by Okuma, renowned for their quality products such as converters and inverter modules. This unit, part of the MSC product family, is integral to various motion control systems, offering high operational stability through maintenance-free use. The power unit integrates several components including a power board, terminal blocks, control boards, and an insulated-gate bipolar transistor (IGBT), supplemented by an array of electrolytic capacitors. Key features include two 24 VDC cooling fans and a converter link facilitating communication between MPS and MIV modules.
The 1006-2303-0539-013 (MPS45A) model exemplifies optimized energy efficiency, maintaining system temperature through its strategic cooling design. This power supply unit hosts a series of indicator lights, including a 7-segment LED for error display, a DC buscharged status light, and a 24 V power error light. The unit can perform optimally between 0 to +40 degree Celsius and up to an altitude of 1000 meters. However, it lacks protection against water jets, necessitating installation in secure environments. Operational guidelines are specified in the MPS user manual for adept usage.
