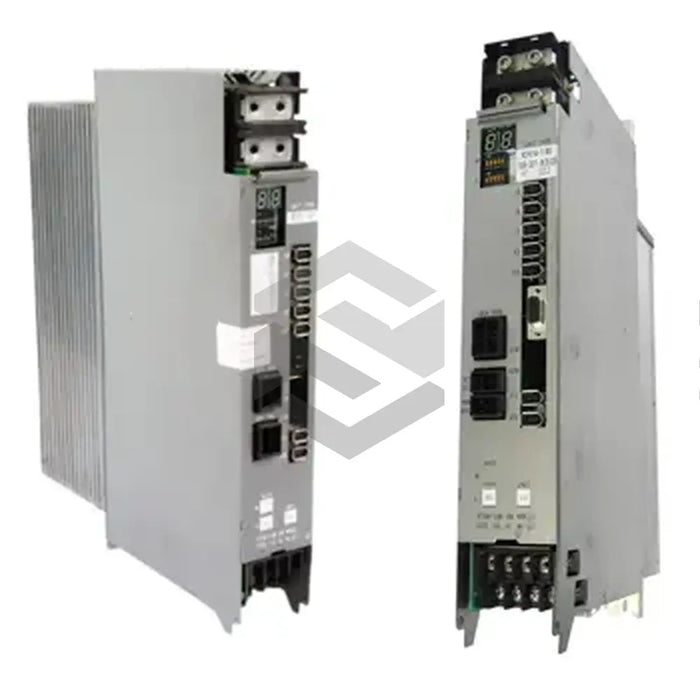

1006-2324-1437007
by Okuma
The product 1006-2324-1437007 (MIV0101A-1-B5), designed and developed by Okuma, is an integral part of their MIV series of inverter units. Okuma is widely recognized for its comprehensive range of advanced factory automation systems and machine tools, such as CNC controls, lathes, and machining centers. Catered for servo axes applications, the inverter controls both the BL and the PREX servo motors, another effective product line from Okuma.
The 1006-2324-1437007 (MIV0101A-1-B5) unit functions mainly as a driver for both spindle and axis drive motors. It is uniquely designed with a built-in control board (ICB1 type) to regulate its operations. For communication purposes, it uses a servo link, encoder link, and converter link. Additionally, the unit utilizes a compatible DC power supply model that supplies a control voltage of 24V DC. The operational status of the inverter is displayed through 7-segment LEDs identified on the front of the device. These LEDs are crucial for diagnosing system faults or failures and for monitoring the overall operational status. Furthermore, two different display modes, showing regular operational status and alarm status, provide valuable information to its users. The alarm status mode is particularly useful, alerting users to faults by exhibiting error numbers that correspond to the fault's cause.
