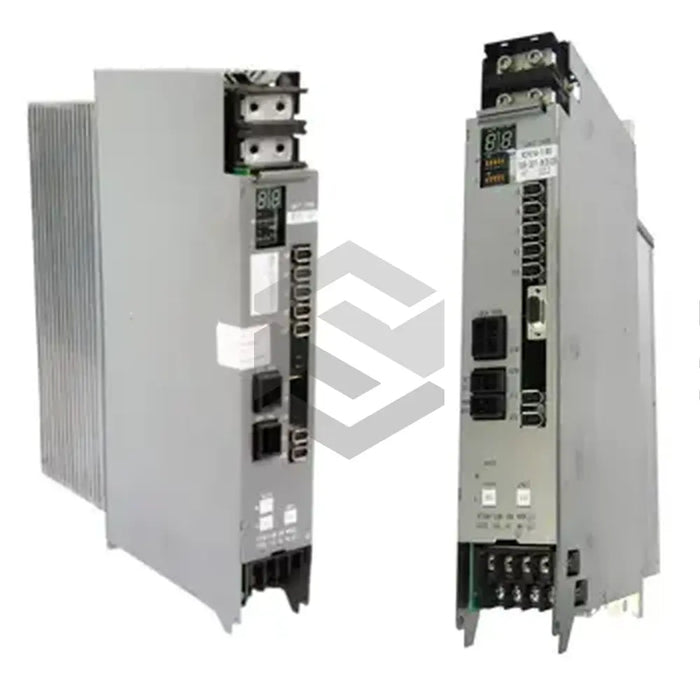

S image of 1006-2331-1641003

1006-2331-1641003

by Okuma
$2,862.35 - $2,862.35
$2,862.35
$2,862.35 - $2,862.35
$2,862.35

Available, Shipping Varies

The 1006-2331-1641003 (MIV0204A-1-B5), crafted by Okuma, is a robust dual-axis servo drive (MIV) inverter employed in their motion control system (MCS). Its purpose is to empower spindle and axis drive motors. This device is perfectly equipped with a uniquely designed ICB1 integrated control board for motor control. Operating with a 300 Volts and 24 Volts (DC) power supply, this model is compatible with Okuma's BL and PREX motors. The unit also boasts a Control ROM type 5. On the technical front, this model provides two-axis control with an L-side (axis 1) unit capacity of 2 kW (2.67 hP) and an M-side (axis 2) unit capacity of 4 kW (5.36 hP). Weighing approximately 7.8 kg (17.2 lb), the model's dimensions are 380 mm × 100 mm × 325 mm. Its distinguishing feature is a 7-segment LED indicator on the front panel communicating the operational status. This includes alarm and normal operation modes as well as a range of error codes. Notably, before replacing MIV units, a proper shutdown is mandatory, and the charge indicator should be off for at least two minutes to uphold safety. The software and control board of the replacement should also mirror the original.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Weight

7.8 kg (17.2 lb)

Product

MIV Inverter Dual-Axis Servo Drive Unit MIV0204A-1-B5

M-side Unit Capacity

4 kW (5.36 hP)

ROM Type

5

External Dimensions

380 mm × 100 mm × 325 mm
