103H7823-0440
by Sanyo Denki

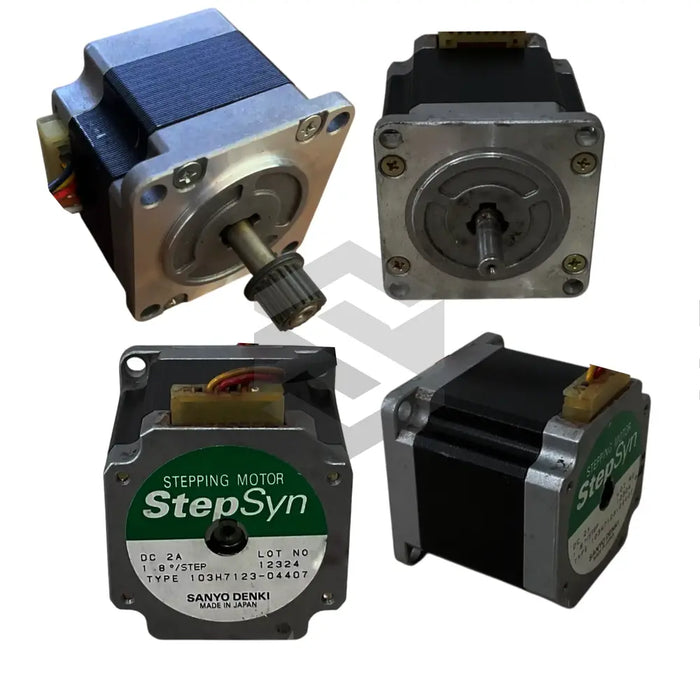

The 103H7823-0440 stepping motor by Sanyo Denki is a standout product within the StepSyn Stepping Motors series. Engineered for precision and reliability, the motor features a 2.1 N·m holding torque and a 1.8°/step step angle that deliver exceptional positional accuracy. Designed for automated control systems, this motor operates at a DC24V source voltage and a wire-wound current of 2A/phase, ensuring reliable performance in tasks that demand both fine resolution and robust power. Its ability to securely maintain rotor position makes it an ideal solution for applications requiring controlled motion in industrial automation settings.
The technical specifications of this stepping motor underpin its performance and adaptability. It operates within an ambient temperature range of -10°C to +60°C and supports an allowable radial load of 60N alongside a thrust load capacity of 220N. Additional details such as a rotor inertia of 0.84 x 10^-4 kg·m² and an insulation resistance of 100MΩ at DC500V illustrate how this motor is optimized for energy efficiency and durability. The device supports a maximum pulse rate of 20 kpulse/s and withstands voltage surges up to 1kVAC for 1 minute, ensuring steady performance in diverse industrial conditions.
Beyond its core motor functions, this unit incorporates several features that enhance its suitability for modern automation requirements. It is equipped with a connector from JST Mfg.Co., Ltd which ensures secure electrical engagement and effortless integration in compact, space‐constrained assemblies. Designed to operate reliably in environments with 20% to 95% RH (no condensation), the motor’s specifications meet stringent industrial standards, promoting longevity and dependable operation. The combination of these features not only solidifies its value in precision stepping applications but also highlights its compatibility and efficiency in streamlining automation processes, contributing to smoother system performance and reduced maintenance downtime.
