1070077300

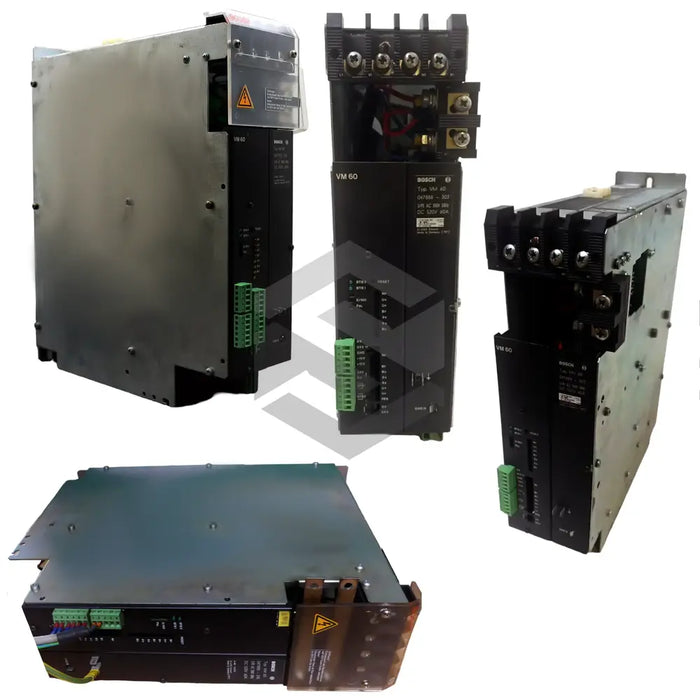

The Bosch Rexroth Indramat 1070077300 (VMA 20KB 001-D) is an industrious power supply module belonging to the VM series. Known for their high standard and user-friendliness, Bosch Rexroth products are internationally reputable. This power supply module efficiently facilitates energy distribution to several Indramat drives and controls. It operates with a voltage supply between 380VAC and 415VAC and functions at a frequency of 50Hz/60Hz. It can continuously deliver a rated current of 23A at 45 degrees Celsius and offers a rated power of 16 KVA at the same temperature. It's also equipped with a power derating feature at 0.62 W/K between 45ᵒC and 55ᵒC.
Despite being lightweight at 15kg, this 100mm-wide module has a stop energy capacity of 6500 Ws, with the maximum continuous braking power topping at 400W. It limits power loss in the switch cabinet to a maximum of 220W, requiring a meager 1A current from a 24V power supply for normal operations. Furthermore, it does not require a backplane module for installation. This power supply module prides on its diagnostic setup, continually monitoring for any operational anomalies – heat sink temperature, ballast switch overload, power limit, module and ambient overtemperature, and under or overvoltage conditions in the device.
