1070077375

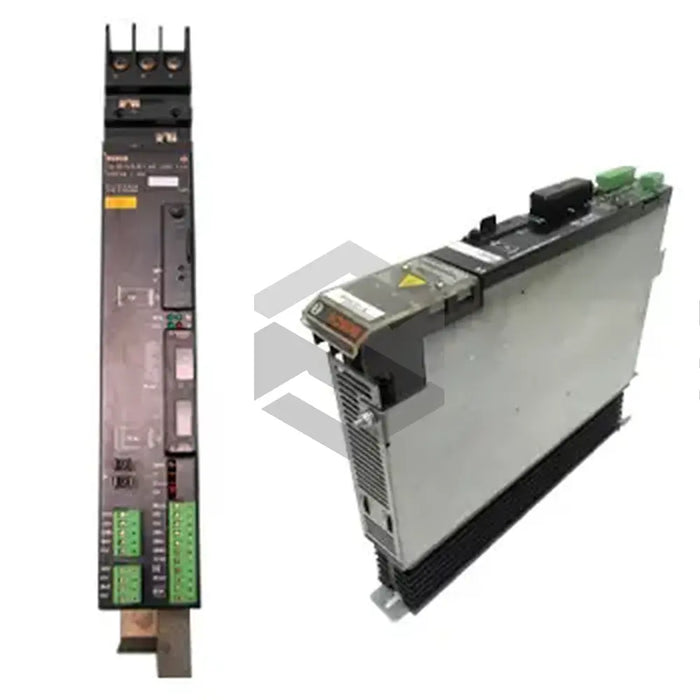

Produced by Bosch Rexroth Indramat, a leading manufacturer in motion control equipment, 1070077375 (SM 17/35-TA) is an innovative inverter system designed to maximize the performance of the company's brushless servo motors. This device modulates the speed and torque of the servo motors, and contains advanced features for rotor position recognition along with a brushless tacho. The built-in optimization card ensures the regulation of motor speed, while extensive safety measures such as automatic system fault recognition protect user operations and equipment.
The 1070077375 (SM 17/35-TA) model possesses a responsiveness to motor jams, reducing current supply by 50% within two seconds as a preventive measure. The module's rated current and peak current stand at 17 A and 35 A respectively, with power loss capped at 150 W. Incorporating a commutation monitoring feature, the device tracks and alerts of incidental transfers of unwanted signals from the rotor position encoder. Additional monitoring functions are implemented for motor temperature and heat sink temperature above set parameters, with a warning signal for overheat incidences. Equipped with a current regulator function, the device enables control over the motor's winding current for the creation of specific amounts of torque for rotor position adjustments. With a maximum operating height of 1000 amsl, this model's humidity limits are set according to class F and DIN 40040.
