1070077608

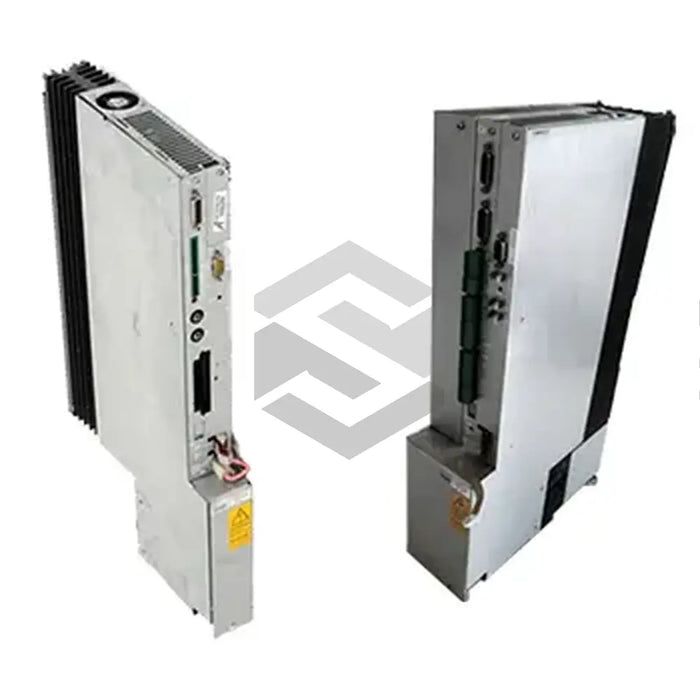

The product at hand is a Bosch Rexroth Indramat-manufactured, three-phase servo drive module from the Indradyn D series, identified by the product number 1070077608 (DMA 30A 4101-D). Designed with RMA/DM 30 backplane module and a fan, this drive module can cope with maximum power loss up to 185A. Usage safety is guaranteed in environments without exposure to harsh elements like metal vapors, dust, acid, or corrosive materials. The product should be kept at temperatures between -25°C and +70°C. It also has a modular structure allowing easy installation onto backplane modules.
The 1070077608 (DMA 30A 4101-D) module also supports industrial usage, even in situations with no direct connection to a public low voltage power supply. It adheres to EN 50178 standards in its design and rating. It employs an inverter for position control and a multi-turn encoder with a 32-bit resolution for 4,096 revolutions. The analog interface incorporates a VeCon Chip processor board boasting 12-bit resolution and high-speed programmable analog outputs for superior control over current, speed, and position. Additionally, this product is compatible with inbuilt motors and specific Bosch Rexroth DU, SR, and SF motors. Its CE marking ascertains compliance with the machinery and low-voltage directives.
