1070077610

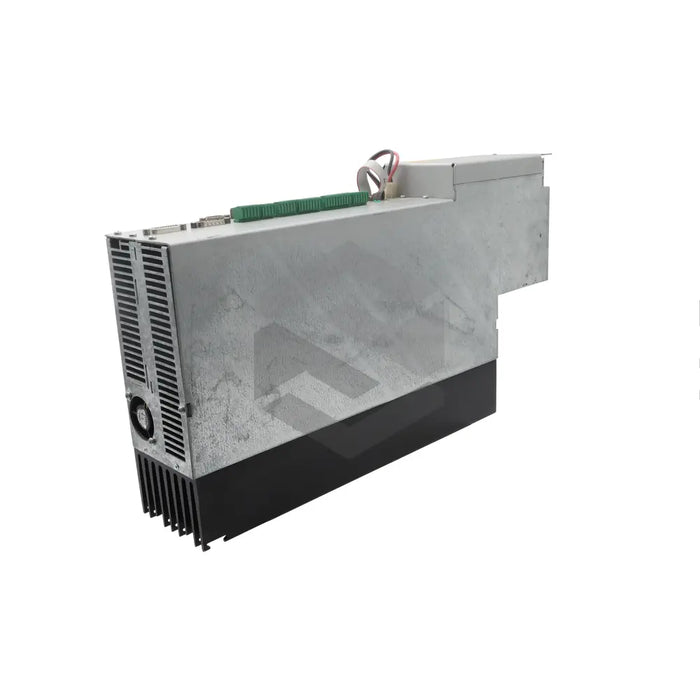

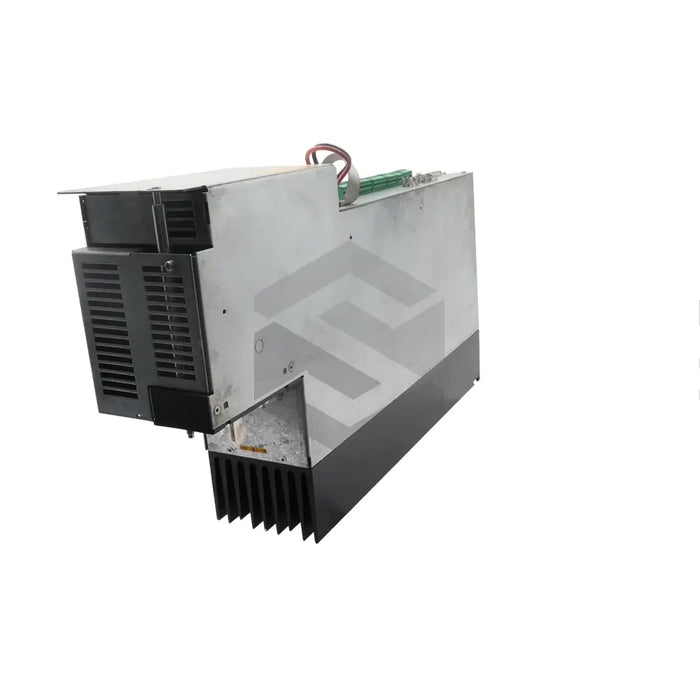

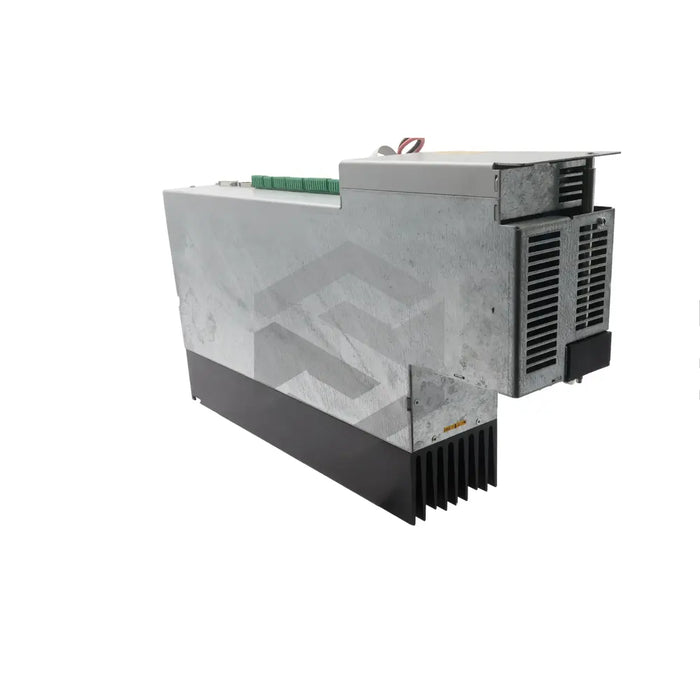

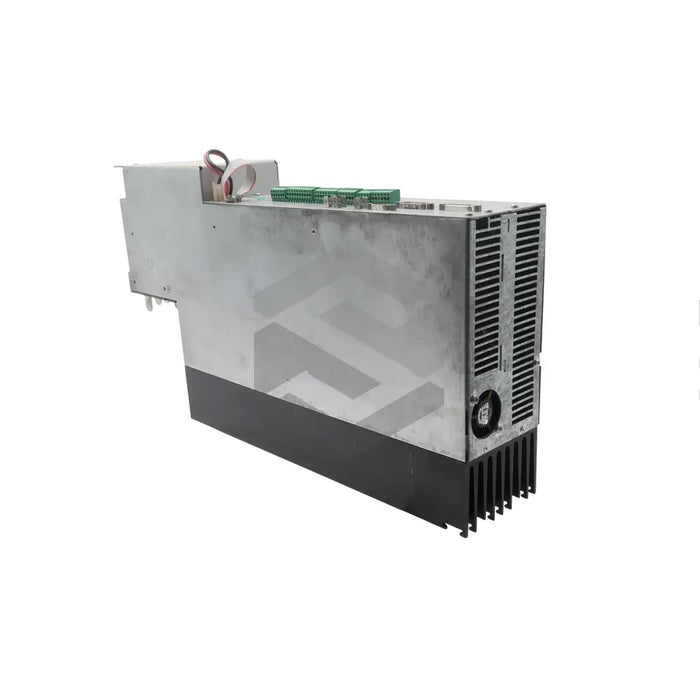

The Bosch Rexroth Indramat-distributed 1070077610 (DMA 85B 4101-D) is a three-phase servo drive module equipped with a Class A drive inverter. With the propensity for interference in residential areas, this module offers a non-regulated DC link voltage of 715VDC and a 16 bit-resolution analog interface. Designed with modularity in mind, it has an IGBT output stage and supports automated commissioning via electronic rating plates. The module complies with EN 50178 and EN 60204-1 standards, meeting both low voltage and machine directives.
The device cools down by air circulating on the backplane mechanics, mitigating overheating risks. Equipped with a +/-10V speed analog interface, the module performs full digital speed, current and position control with the assistance of the Ve-Con chip. This processor board also transfers actual position values by simulating the standard encoder using mating connectors or cables. This variant does not require additional modules and exhibits a maximum power loss of 380W within the switch cabinet. According to DIN IEC 68-2-27, it resists shocks up to 15g without functional disturbance. Remember, installation should be in switch cabinets with an IP 54 protection rating and dust filters on all air entries and exits.
