1070078598

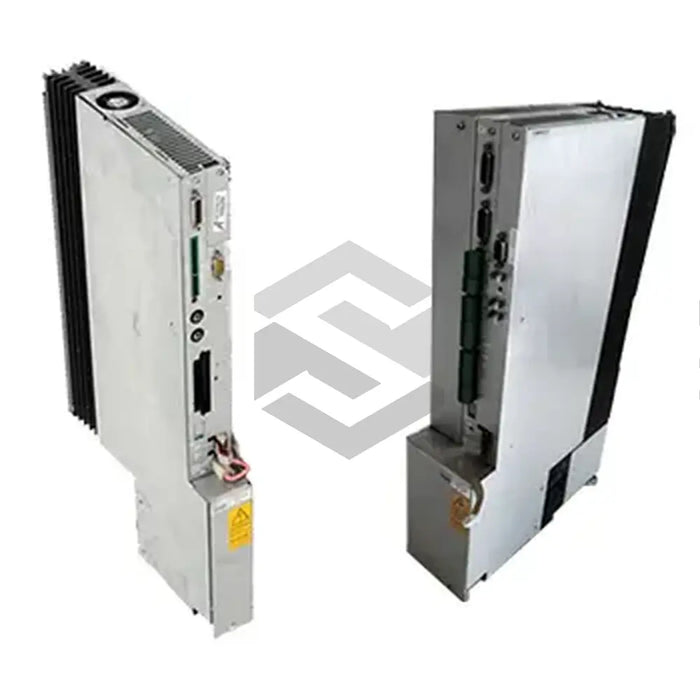

The 1070078598 (DMA 15A 4101-D) is a Class A, three-phase servo drive module produced by Bosch Rexroth Indramat. This module features a +/-10V speed analog interface with 16-bit resolution and a standard encoder interface. The encoder provides 20 bits resolution for the actual position value. Rated with a current of 6.1Arms, it can achieve a maximum current of 18Arms at 4kHz frequency. Its dimensions include a width of 50mm and it weighs 7.3kg. Often used in the areas of CNC machining, automation and robotics, the unit exhibits versatility across diverse applications.
Adhering to EN 60 529 specifications, the drive inverter has an IP 20 protection rating and should be housed within dust-filter equipped switch cabinets. As part of the manufacturer's Indradyn D series, this module maintains a regulated DC link voltage of 670VDC and following mains disconnection, the covers should only be removed after approximately five minutes to ensure full de-energization. Connecting through control cables and DC link, it has an IGBT output stage with a current rating up to 140A. The module's digital speed and current controllers operate on a cycle of 62.5μs each, following a cascade structure, with standard encoder simulation available to transmit actual position values. Any alteration to the unit's hardware components may result in material damage or potential injury.
