1070079211

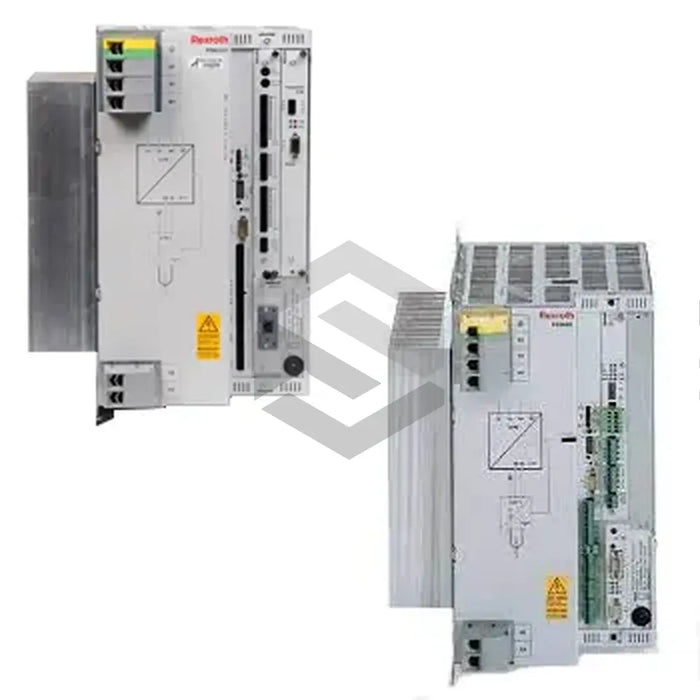

The 1070079211 (PSI6100.100-L1) is an MF (Medium-frequency) inverter designed by Bosch Rexroth Indramat. It boasts an integrated control function and is primarily used to connect with PSG 3000 welding transformers for different resistance metal welding tasks. Offering separate control and monitoring functionalities, this inverter aims to enhance welding efficiency. Key features include easy programming, operation, and diagnostics due to its user-friendly interface, reduced cabling as a result of integrated system components, and simplified integration into a portable welding box system. The product uses air cooling, necessitating sufficient ventilation for optimal performance.
With a power rating of 400V to 480V, 50/60Hz, and a continuous thermal current of 110A, the 1070079211 (PSI6100.100-L1) is compatible with welding transformers like PSG 3050.00 A and PSG 3050.10 A. Its fundamental construction includes mounting options, a welding transformer connector, weld timer, interface slots, and a battery compartment. Distinguished as a 3-phase MF inverter, it is designed for recessed mounting in a switchgear cabinet and comes with IP20 protection class. However, it requires a cabinet with IP54 protection for installation. It operates optimally at an installation height of up to 2000 meters above sea level, in up to 90% relative humidity at 20 degrees, and a storage temperature range of -25 to 70 degrees.
