1070082299

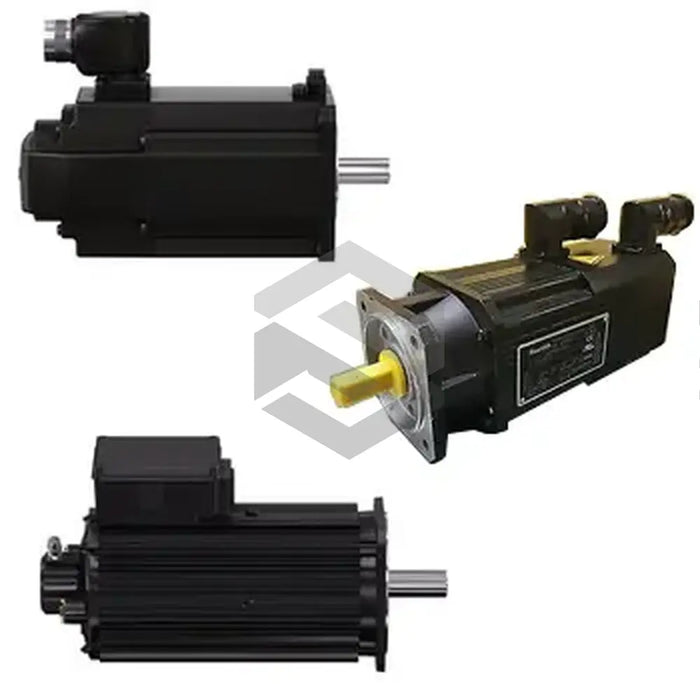

The product, labeled 1070082299 (SF-A5.0250.030-14.050), is a servo motor designed and crafted by Bosch Rexroth Indramat, a division of the Bosch Rexroth Group. It's designed to deliver precision position control in three-phase modules, has built-in automatic commissioning via electronic rating plates, and can be directly connected to a power supply. 1070082299 (SF-A5.0250.030-14.050) is composed of a power supply and axis modules, demonstrating a modular structure. It was designed specifically to be utilized with synchronous motor/drive systems to form a system that satisfies some of the highest standards in positioning and synchronization precision.
The output stages of this motor are offered in three mechanical categories, tailored to meet the varying current output requirements of different users. These categories are: without backplane module, with backplane module, and with water cooling. The faceplate-free version can stand up to a maximum current of 35A. A set DC link connects via busbars, and the supply module incorporates a built-in startup circuit along with an external or internal ballast switch. This motor integrates various functionalities, such as a SERCOS interface, analog interface, and motion control, among others. While using the analog interface, the product offers digital control of speed, position, and current via the VeCon chip. Maximal resolution of the analog setpoints is 16 bits, while nominal resolution is 12 bits. This servo motor offers an IP 20 degree of protection and thus necessitates a control cabinet for shielding from external elements and liquids.
