1070083942

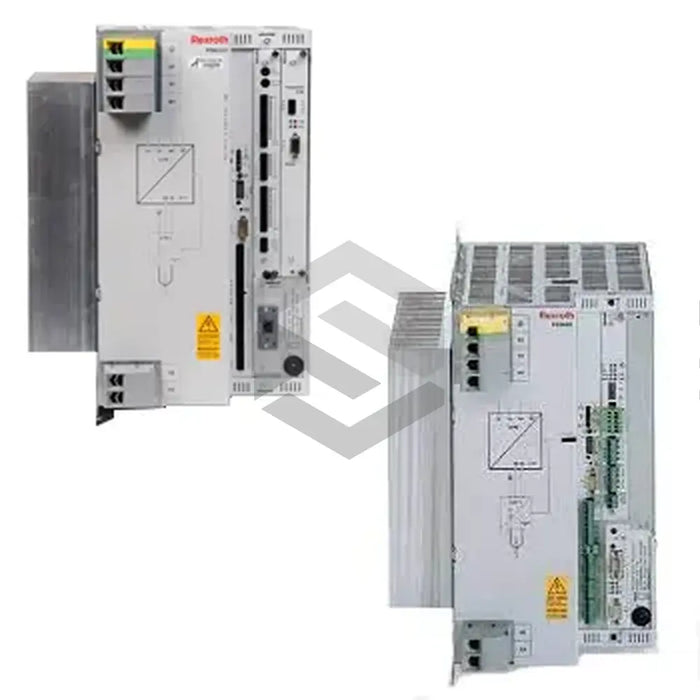

The 1070083942 (PSI6100.201-L1), a product from Bosch Rexroth Indramat, is an advanced medium-frequency inverter meant for welding applications. It exerts control over the welding process by managing the Medium Frequency (MF) output voltage and Direct Current (DC) welding current. The device is known for enhancing the speed and stability of the welding process. Further, it is especially well-suited for processing aluminium and galvanized sheets. The 1070083942 (PSI6100.201-L1) contributes to reducing the welding transformer's weight while enhancing welding current reliability. It forms part of the MF welding system, including the PSG 3000 MF welding transformer, aimed at controlling these transformers in an industrial setting.
The product is equipped with numerous features to boost user experience and safety such as a weld timer, slots for type-specific I/O interfaces, optional Fieldbus slots and the capacity for retrofitting a quality module. The device comes with an integrated BOS-5000 interface for convenient programming, operation, and diagnostics. Further, the comprehensive system minimizes cabling requirements, saving installation space. The product, with an air cooling system, operates with a rated voltage ranging from 400 V -20% to 480 V +10%. To prevent overload, the device has a temperature-monitoring system with a thermostatic switch, activating whenever the temperature exceeds 65 degrees. As for the cooling air temperature, it must be below 45 degrees and be devoid of harmful agents such as acids, corrosive materials, or salts.
