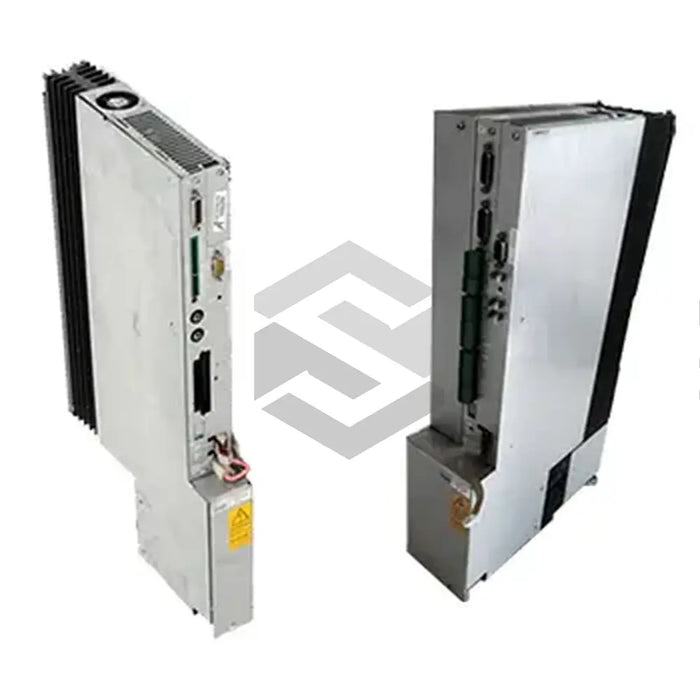

S image of 1070085645

1070085645

by Bosch Rexroth Indramat
$10,000.00 - $10,000.00
$10,000.00
$10,000.00 - $10,000.00
$10,000.00

In Stock, Ships 1 - 3 Days

The DMA 85B 1101-D is a servo drive module manufactured by Bosch Rexroth Indramat, falling under their Servodyn D Series. It's tailored to work with both asynchronous and synchronous motors, making it versatile and universally compatible. Distinguishing features of the module include its three-phase design, air cooling through backplane mechanics, and position control functionality. Built for control cabinet installation, it has a compact depth of 300mm. Please note, five minutes' wait is required post-disconnection from the mains, for de-energization of the system before the cover is removed. ESD protection precautions are mandatory for operation. It has a 50mm width. This servo drive module boasts a Sercos interface known for its easy commissioning, installation, and real-time processing capacity. Its digital current, speed, and position control functions are powered by a 32-bit signal processor on the processor board. An integral personality module provides redundantly safe, 2-channel monitoring via its RSU capability. The module has a 1.35A power demand from a 24V power supply module, and the resolver provides 12bit resolution of the actual position value. Remember, careful handling is required to prevent damage to this sensitive device. It integrates the RMB/DM type backplane module with two fans, operating with a current rating of 86ARMS at 4kHz frequency and a regulated DC link voltage of 675VDC. It's derated between temperatures of 45°C and 55°C. Global shipping is possible through FedEx, DHL, or UPS.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Regulated DC Link Voltage

675VDC

Power Demand

1.35A from the 24V power supply module

Drive Module Type

Servo

Design

Three-phase with position control

Signal Processor

32-bit
