1070085682

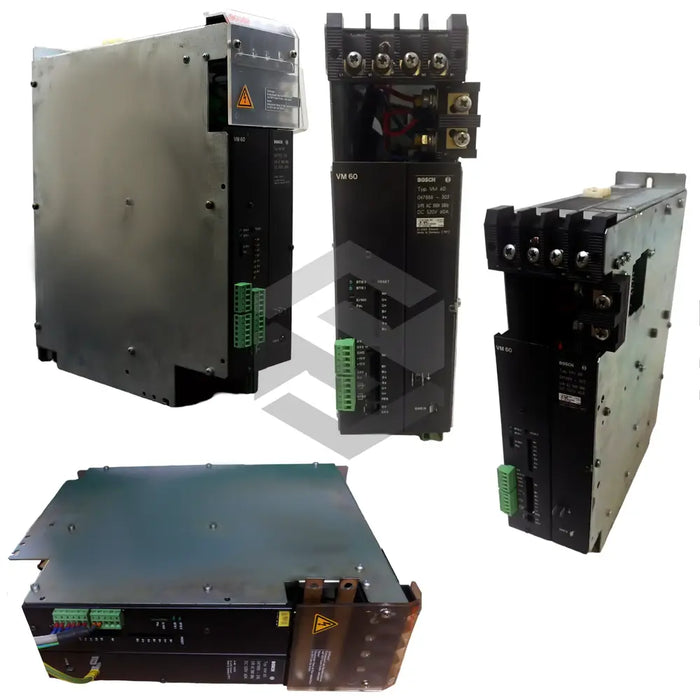

The Bosch Rexroth Indramat's 1070085682 (VMA 070CR 001-D) Power Module showcases an efficient, space-saving design and leverages air-cooling to manage heat dissipation. Its characteristics and parameters include a module width of 150 millimetres and sinusoidal recovery. At an ambient temperature of 45 degrees Celsius, the module has a rated current of 68 Amperes and a nominal power of 47 kW. It can reach a peak power output of 70 kW, with no ballast switch included. This module is known for its mains-friendly energy recovery.
The 1070085682 (VMA 070CR 001-D) model, which weighs 14.3 kg, utilises a 24 Volts DC supply with an input current rating of 2.7 A and exhibits a power loss of 800 Watts. Connection to supplying mains is enabled via a NE line reactor and an NAA 70 mains connection module. The latter is naturally cooled, weighs 8.4 kg, and operates on a rated voltage of 400V AC at 48 – 62 Hz. The module's firmware is secured on an MC-VM memory card, and before operation, a PM VMA... personality module needs to be purchased for optimal performance. Lastly, the model requires an RM backplane module for VMA supply modules, which is compatible with the RMC/VM standard module or the RMC/VMC cold module.
