1070086167

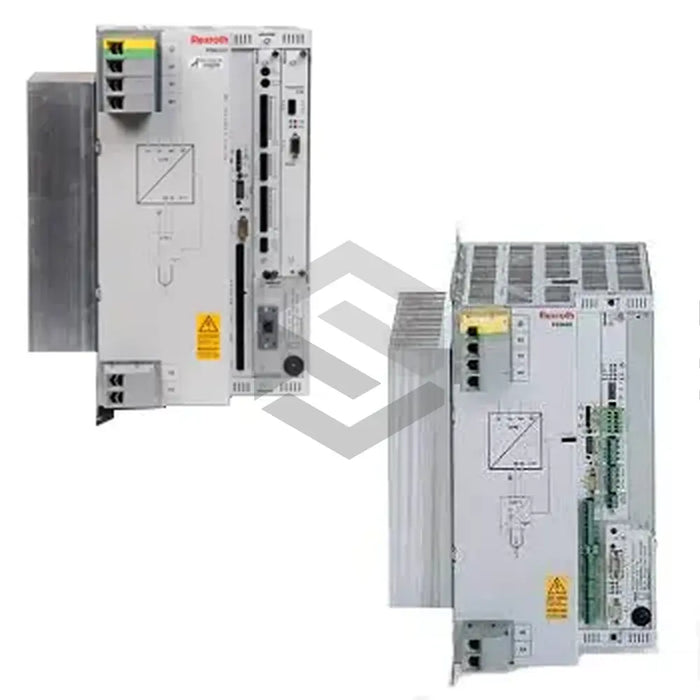

Presenting the 1070086167 (PSI6100.625-L1), an MF Inverter precisely manufactured by Bosch Rexroth Indramat, a company known for its innovative industrial technologies. The 1070086167 (PSI6100.625-L1) is designed for connection to weld transformers of the PSG 3000 series, functioning as a core component in industrial metal resistance welding. It carries a 3-phase design and an integrated weld timer. Additionally, it offers versatile I/O interfaces, including Fieldbus, serial, or parallel connections. To ensure robust performance, this inverter can generate a maximum output current of 400A, a system nominal current of 110A along with an impressive maximum secondary current of 20 kA.
This device operates on a 24 V DC voltage supply and boasts various mechanical characteristics including a clock frequency of 1 kHz, MOV overvoltage protection and a wire range of 35 mm2. Weighing nearly 20kg, the 1070086167 (PSI6100.625-L1) can be either vertically mounted or laid flat on a mounting plate. Its optimal operating conditions entail maximum temperature of 55 degrees Celsius, a relative humidity of 90% at 20 degrees, and an elevation of 2000 meters above sea level. The 1070086167 (PSI6100.625-L1) possesses an IP 20 protection category and should be housed in a switchgear cabinet with an IP 54 protection class. This medium-frequency inverter offers benefits such as reduced welding splashes and superior welding for thin sheets, 3-sheet, and fine spot applications.
