1070170148

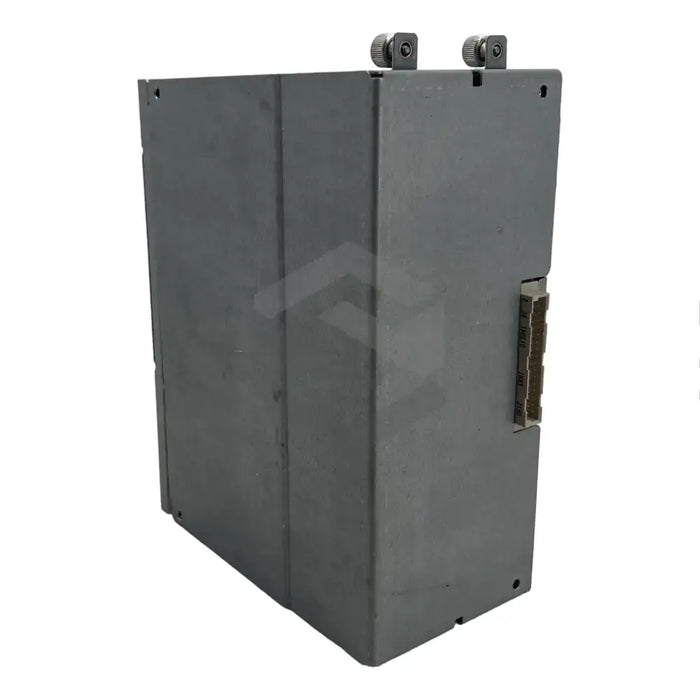

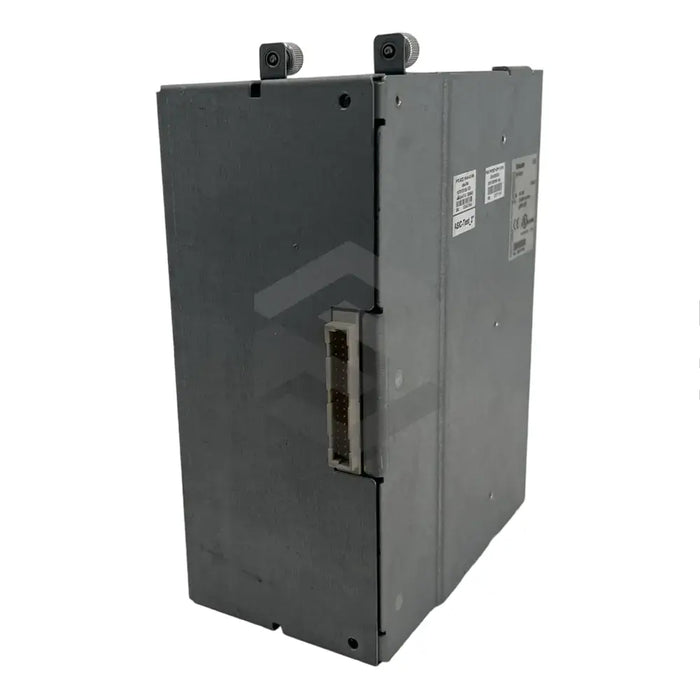

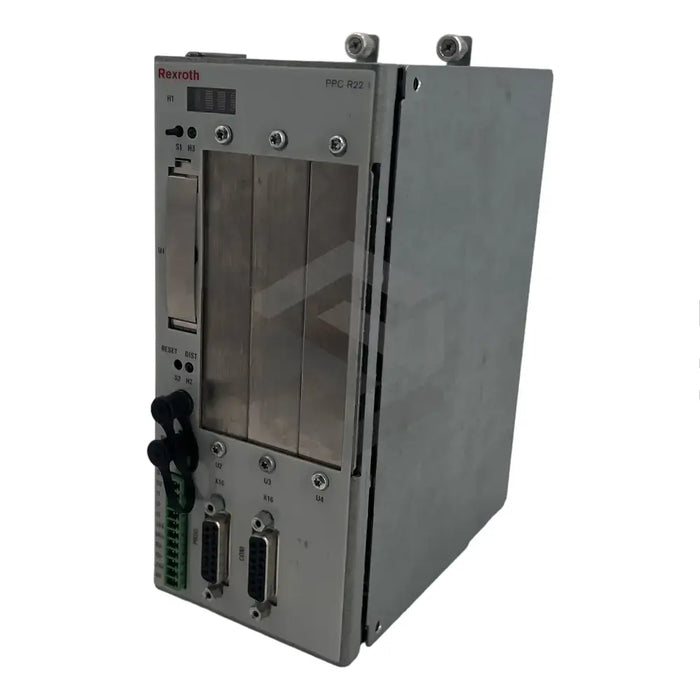

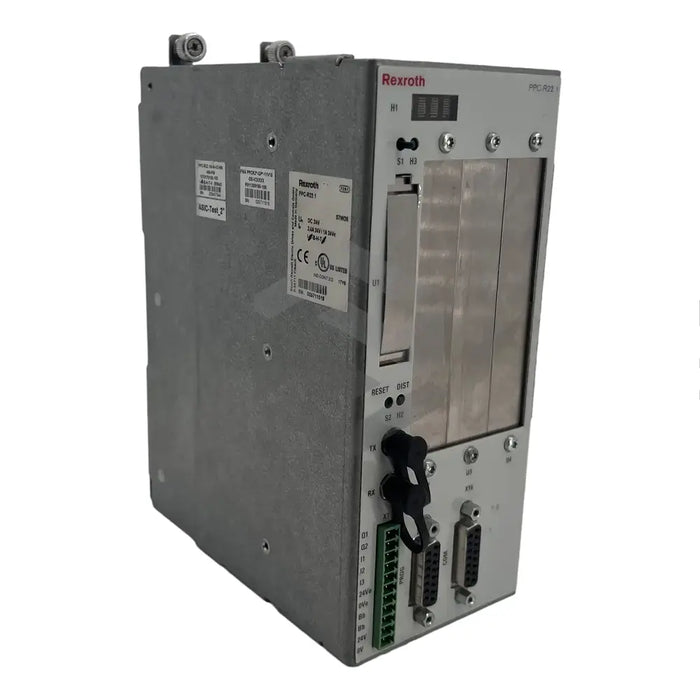

The 1070170148 (PPC-R22.1N-N-NN-NN-NN-FW), a product of Bosch Rexroth Indramat, is a modular controller pertaining to revision 1 of the R22 series of motion and logic controllers. It offers multiple features, including a S1 display toggle button, a slot for a 32 MB flashcard, SERCOS interface transmitter and receiver, and programming and communication ports, among others. This device is lightweight, weighing just 2.87 pounds (1.3 kg), and is designed for mounting on TS 35x27x15 DIN rails using RMB02.2 racks. It boasts an IP20-rated housing for dust protection, operates at a humidity of 5-78%, and sustains atmospheric pressures between 860 and 1080 hPa at 1500m. The operating temperature ranges from 0 to 45 degrees Celsius, while the storage and transportation temperature ranges from -25 to 70 degrees Celsius.
The 1070170148 (PPC-R22.1N-N-NN-NN-NN-FW) has a supply voltage of 24 Volt DC and a maximum current consumption of 1.2 Amperes. Even though it lacks a battery backup for the internal clock, the incorporated real-time clock ensures accurate timing during power downtimes, powered by a capacitor that lasts for 3 days. It delivers fast I/O processing, with a maximum delay time of 50 microseconds in digital input and less than 500 microseconds for digital output response. It operates with two serial ports and without Ethernet. The corresponding firmware (GPP 10 and Bootloader) must be ordered separately based on the hardware configuration as the device lacks expansion cards.
