1070170191

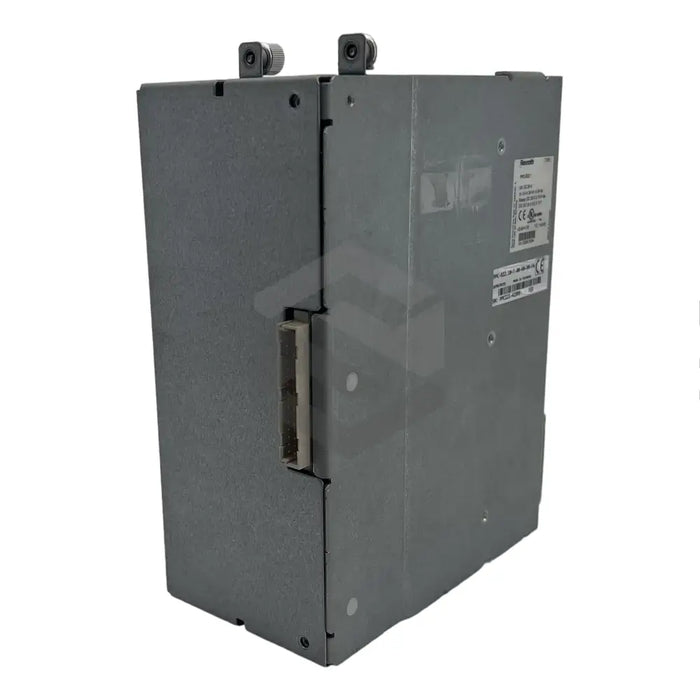

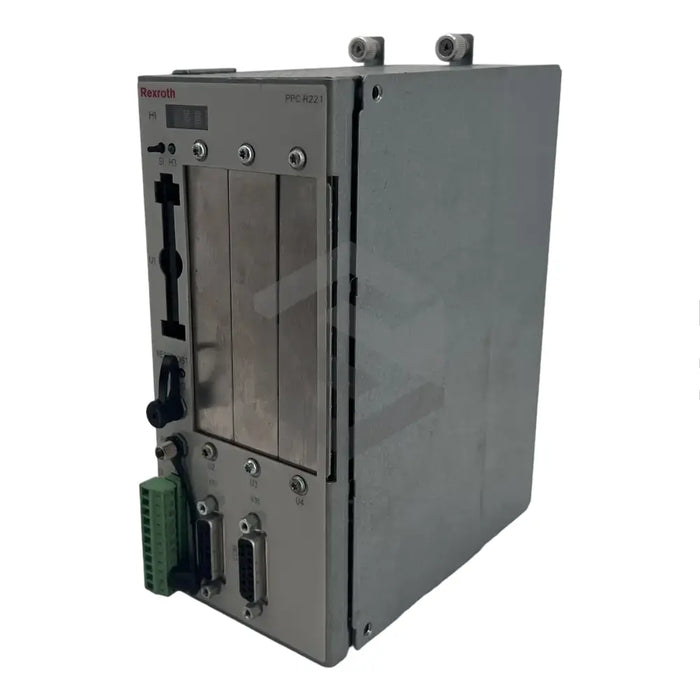

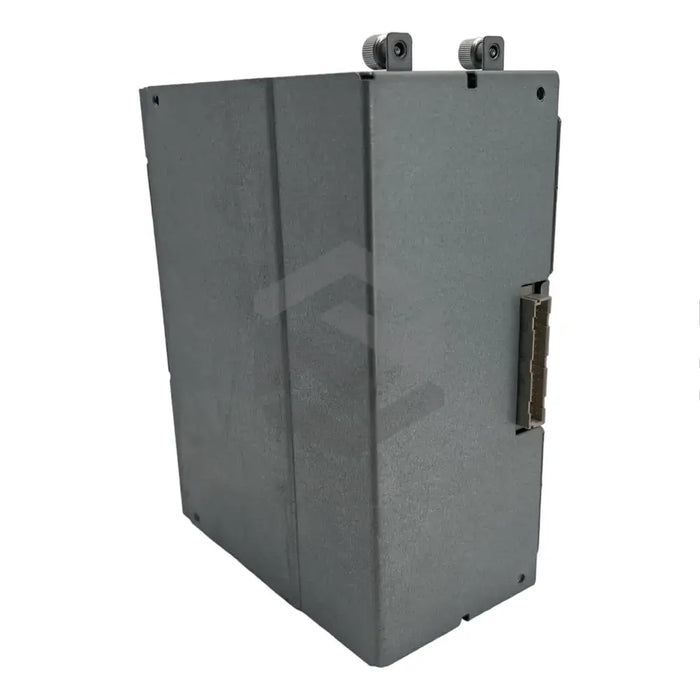

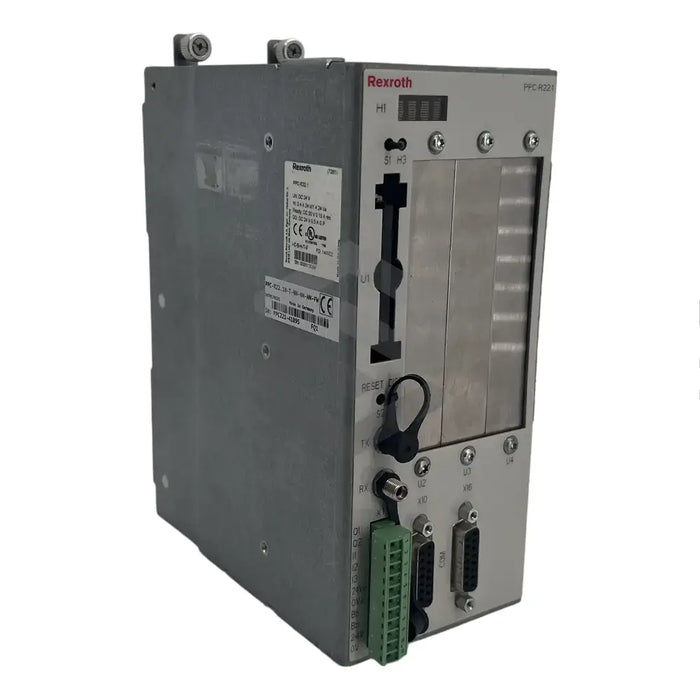

The 1070170191 (PPC-R22.1N-T-NN-NN-NN-FW) CNC module, produced by Bosch Rexroth Indramat, is part of the esteemed MTC200 line of CNC control units. Intended for installation in a switch cabinet alongside an RMB02.2 sub-rack, this product is cased in a double-wide housing. With an inbuilt axis processor, it can accommodate up to eight drives via a SERCOS interface. The module is set up within a module rack system, with no capability of coupling multiple products via a backplane. For thermal efficiency, the RECO module should always be installed vertically. This device relies on MTC control unit firmware and other hardware elements to function.
This CNC module comes with a flash memory of 4MB for firmware-- however, it doesn’t accept memory expansion modules. Notably, the firmware functions as a separate subcomponent. Depending on the current, the power supply cables have a cross-section ranging from 0.75mm2 to 1.5mm2. For additional axis extension, the device can accept a passive axis expansion module but not an active axis processor module. This module includes a boot loader/monitor firmware component that’s critical for initializing the CNC module and its hardware. Operating with a fiber optic technology-based SERCOS interface, it communicates efficiently with paired digital drives. Ideal for use in rotary transfer machines, machining centers, and machine tools, this 1.3kg unit also features display and reset buttons for user convenience.
