1070170284
The 1070170284 (PPC-R22.1N-N-N1-N2-V2-FW) by Bosch Rexroth Indramat stands as an exceptional industrial automation equipment that maintains superior quality and high standards. Operating at a nominal voltage of 24 VDC, this product is highly resilient, activating a POWER-FAIL signal and shutting down the control if the supply voltage goes below +20 VDC. Equipped with a programmable multi-axis motion logic control, it can command up to 40 intelligent digital drives from the IndraDrive, Diax 04, and EcoDrive range.

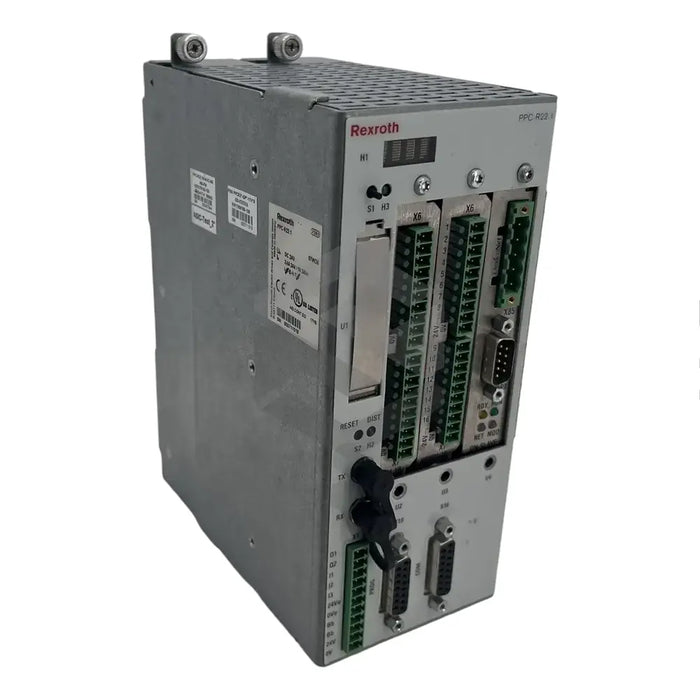

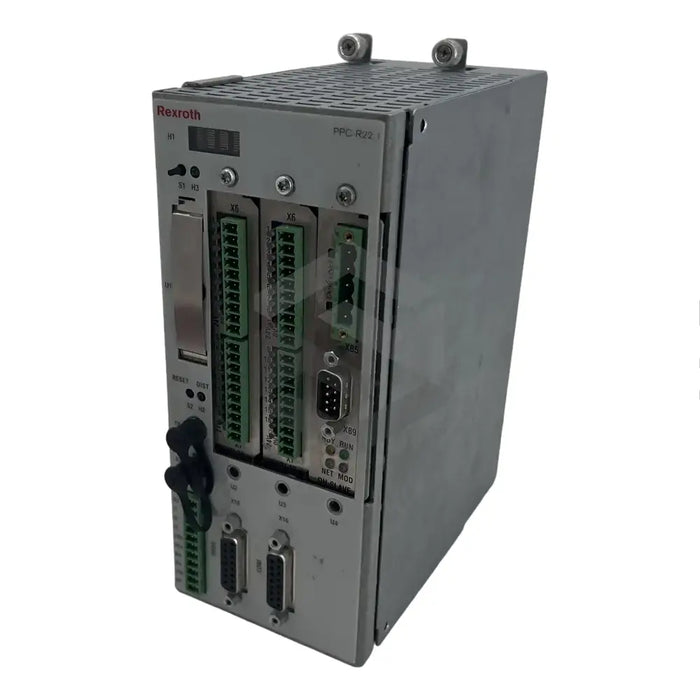

The 1070170284 (PPC-R22.1N-N-N1-N2-V2-FW) model incorporates a VisualMotion GP10 firmware for advanced motion control. It should be installed vertically in the first RMB rack, ensuring clearances for heat dissipation. The H1 display facilitates additional settings access, available through the S1 push button. The unit includes a 32MB compact flash memory card, a PLS master and slave module, and a DeviceNet slave module as a Fieldbus interface. It has an IP 20 protection standard, indicating no liquid resistance, and can function optimally up to an altitude of 1500 meters and within a temperature range of 0 to +45 degrees Celsius, without any impact on its rated data.
