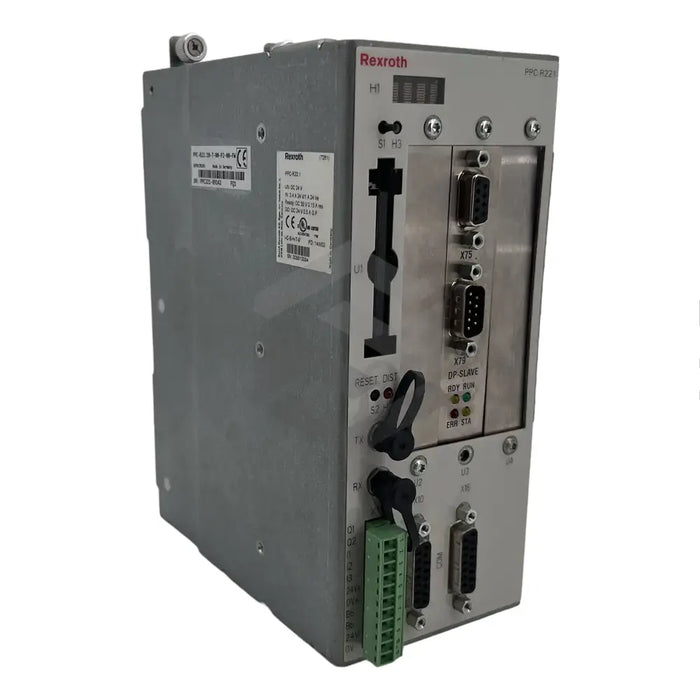

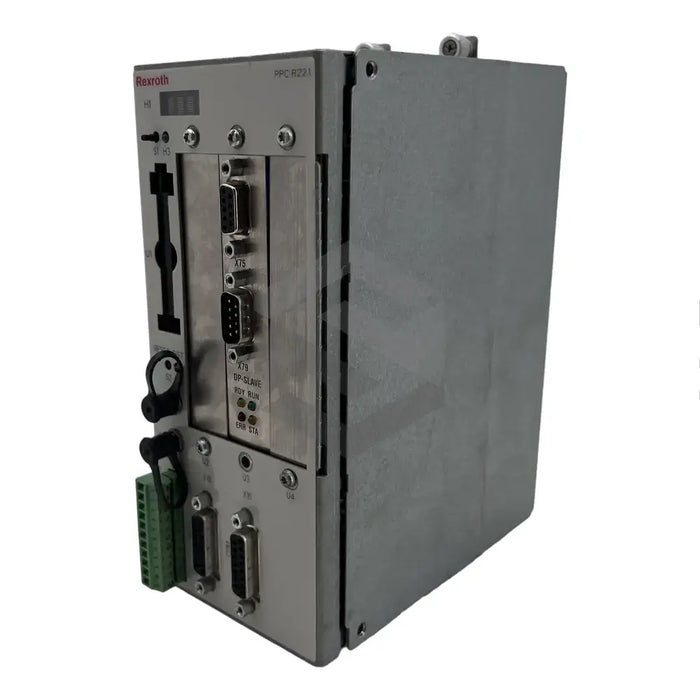

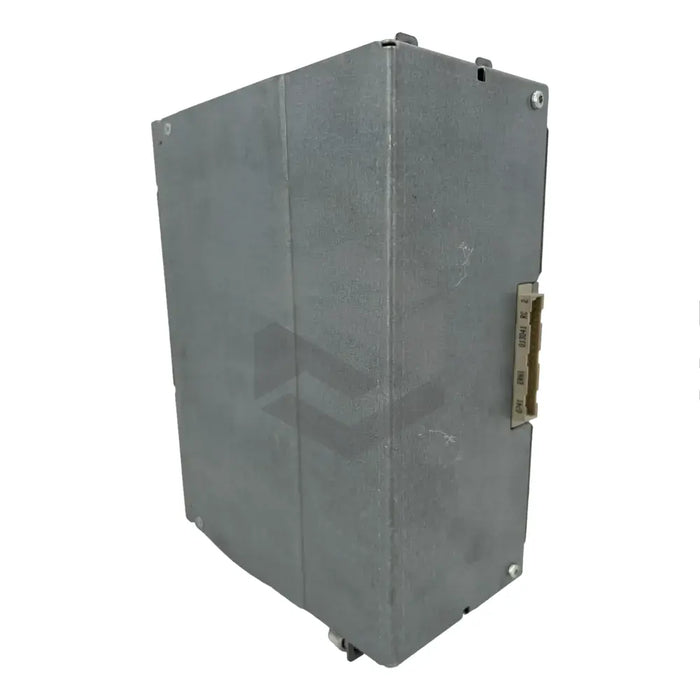

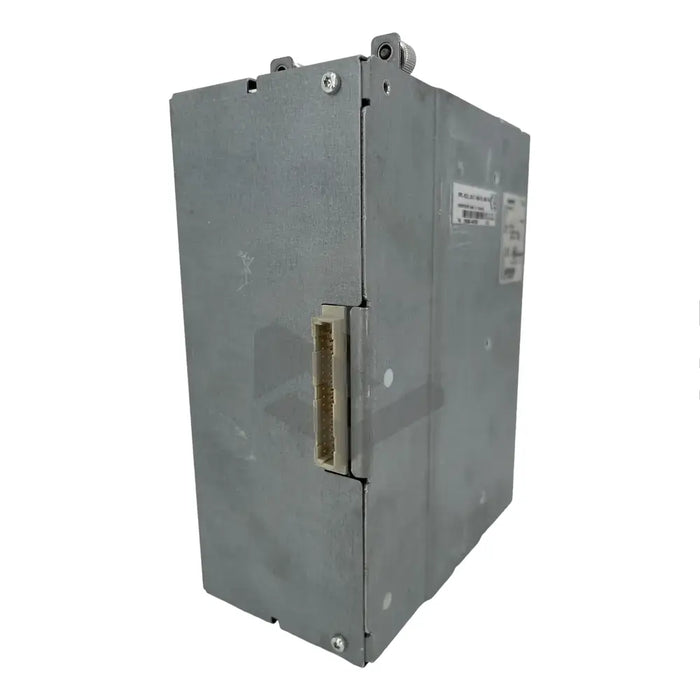

1070170285
The 1070170285 (PPC-R22.1N-T-NN-P2-NN-FW) CNC module, crafted by reputed manufacturer Bosch Rexroth Indramat, boasts stringent compliance with all applicable national EMC regulations. The operation of the module is reliant on a specific application adhering to these standards. The module, with its grounding bolt situated at the base, comes equipped with a PSM firmware module— a 4MB flash memory. Furthermore, it supports both plastic and glass fiber optic cables, offering maximum transfer lengths of 40m and 500m, respectively. It should be noted that incorrect handling could potentially lead to mechanical impairments to these fiberoptic cables.
The CNC module provides a comprehensive diagnostic system to scrutinize any operational issues or malfunctions. The diagnosis display, an alphanumeric interface embedded on the control unit's front, flashes a two-digit or a four-digit error code contingent on the issue. With an operational temperature window spanning from -25°C to 70°C, the module ensures condensation-free storage and transport. It also houses a PROG interface with electrical isolation and has an in-built PROFIBUS-DP slave module. Its SERCOS interface is capable of controlling up to 32 drives at once in its maximum configuration.
