1070170287

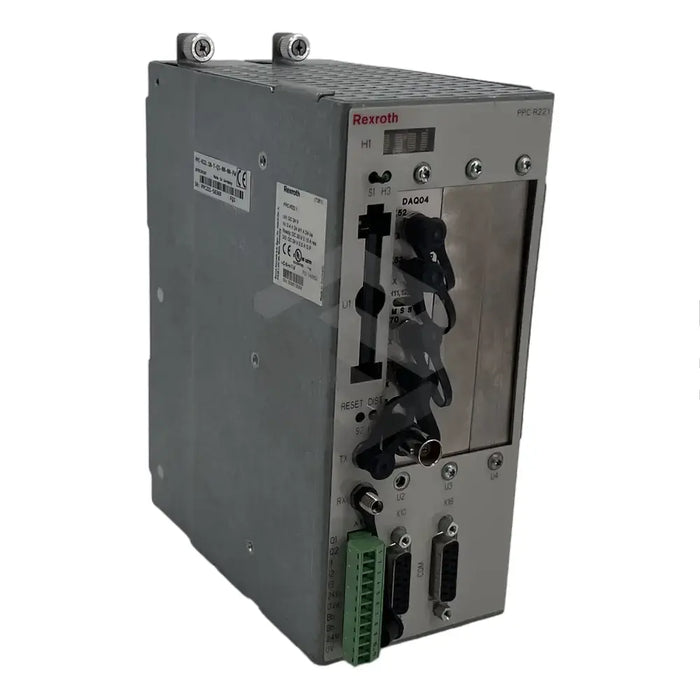

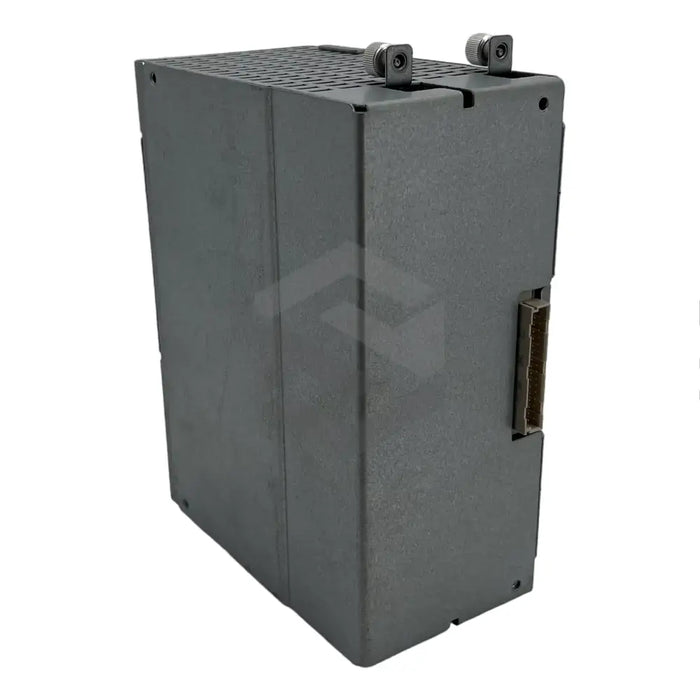

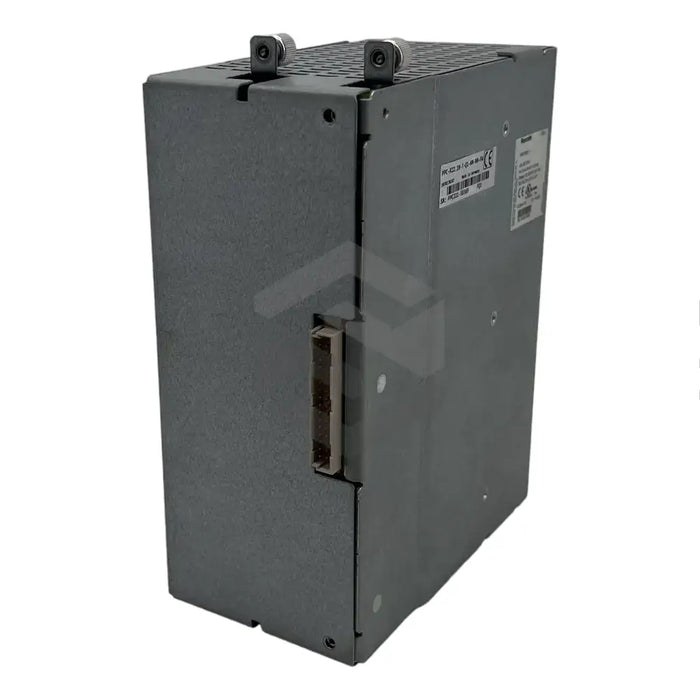

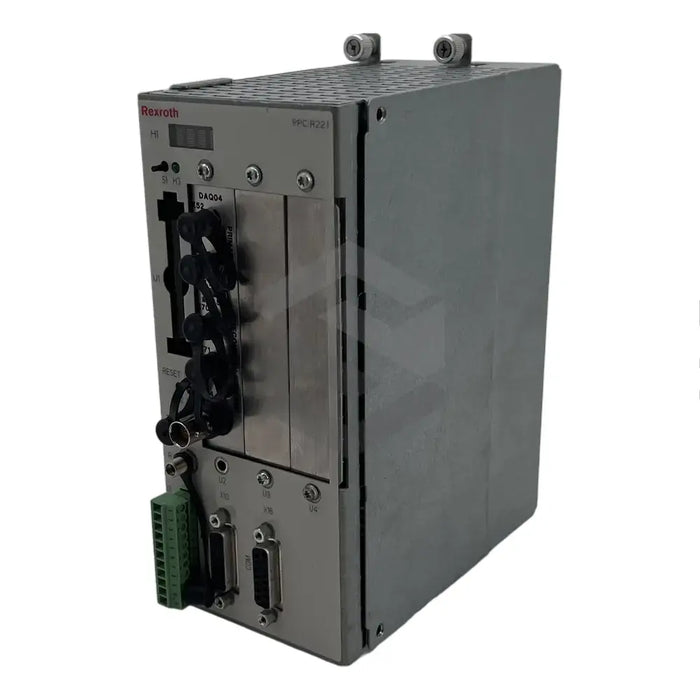

This product under discussion is the 1070170287 (PPC-R22.1N-T-Q1-NN-NN-FW), a high-performance, programmable multi-axis motion control system, engineered by Bosch Rexroth Indramat. This system, built with VisualMotion design, is compatible with hardware version PRC-R22.1 and firmware version GPP 10 (not included and should be purchased separately). The manufacturer specifically recommends that it is used with IndraDrive Diax 04 drives and EcoDrive 03 digital servo drives. It is ideally suited for applications involving motion control, robotics and electronic line shafting. Furthermore, this device slots into the Reco 02 rack from Bosch, which houses I/O modules and facilitates backplane communication. The system should be oriented vertically with ample clearance for adequate cooling.
The 1070170287 (PPC-R22.1N-T-Q1-NN-NN-FW) doesn’t include a memory expansion module but it does come with integrated Ethernet for seamless network communication while also supporting ARCNET. Additionally, the system features two serial interfaces, a programming port (supporting RS-232 and RS-485), and a communication port (supporting RS-232 / RS-422 / RS-485). The system operates within a voltage range of 19.2 to 30 Volts DC, with a peak current consumption of 1.2 Amps. The device, weighing 1.3 kilograms, encased in an IP20-rated protection and ideal for an operating temperature range of 0 to 45 degrees Celsius, is highly durable and reliable.
