1070170288

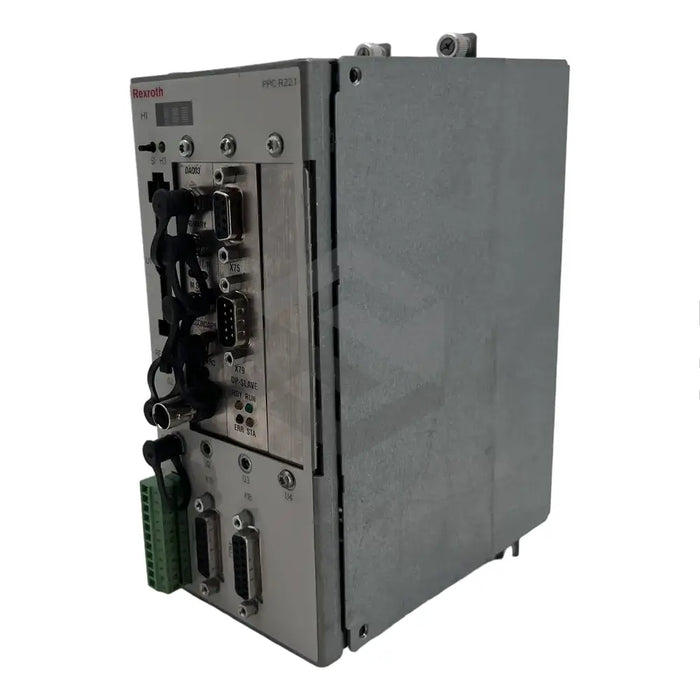

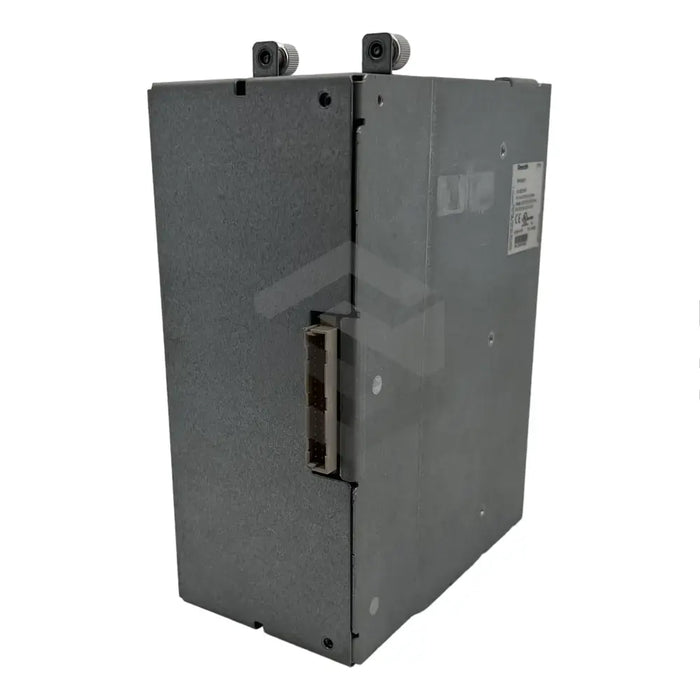

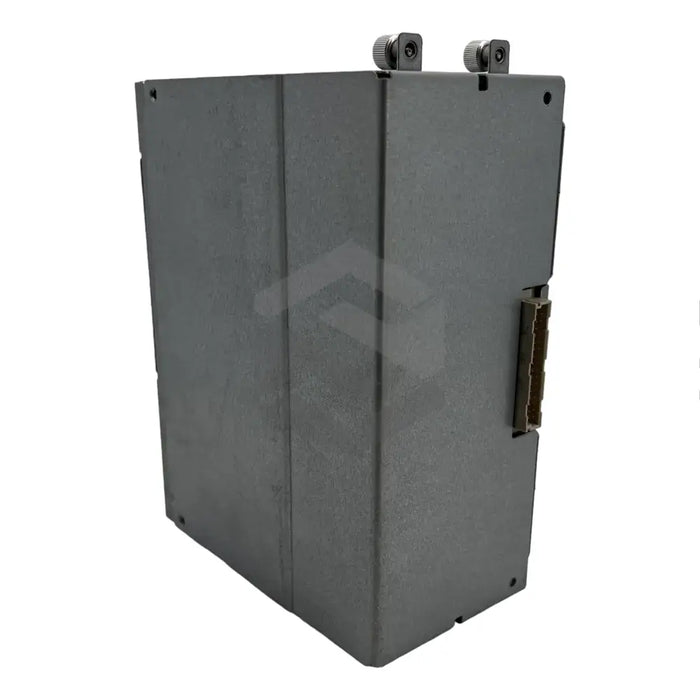

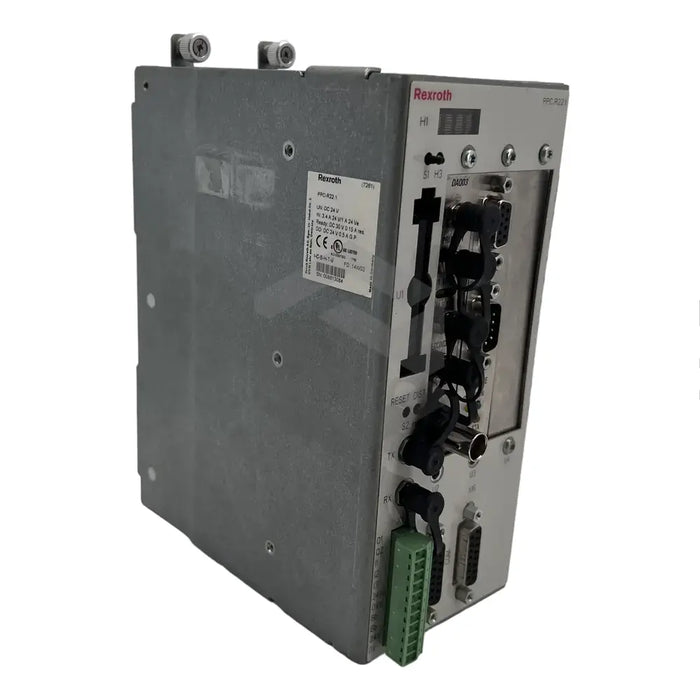

The 1070170288 (PPC-R22.1N-T-Q1-P2-NN-FW), manufactured by Bosch Rexroth Indramat, is a programmable control system, specifically designed to manage up to 40 digital drives. As part of the Rexroth VisualMotion 10 product line, it functions as a multi-axis motion/logic control system. It features an array of standard components, including a display toggle button, reset button, SERCOS interface distortion LED, along with transmit and receive interfaces for a fiber optic-based SERCOS interface. Also included are a status display, three optional expansion slots, a programming port, a communication serial port, and an Ethernet status LED. Despite boasting an Ethernet network port, it does not provide a memory expansion module.
The control system is intended to be installed into slot 00 of a Bosch Rexroth Reco 02 rack, with other slots earmarked for I/O modules. Installation must be vertical and sufficient clearance is required to allow effective airflow and cooling. Temperature must be maintained between 0-45 degrees Celsius during operation and -25-70 degrees when not in use. With an inbuilt PROFIBUS-DP slave module, the system necessitates a separately ordered firmware. Operating on 24 Volts DC, it draws a maximum current of 1.2 Amps and needs a consistent input voltage of at least 20 Volts DC to prevent system shutdown.
