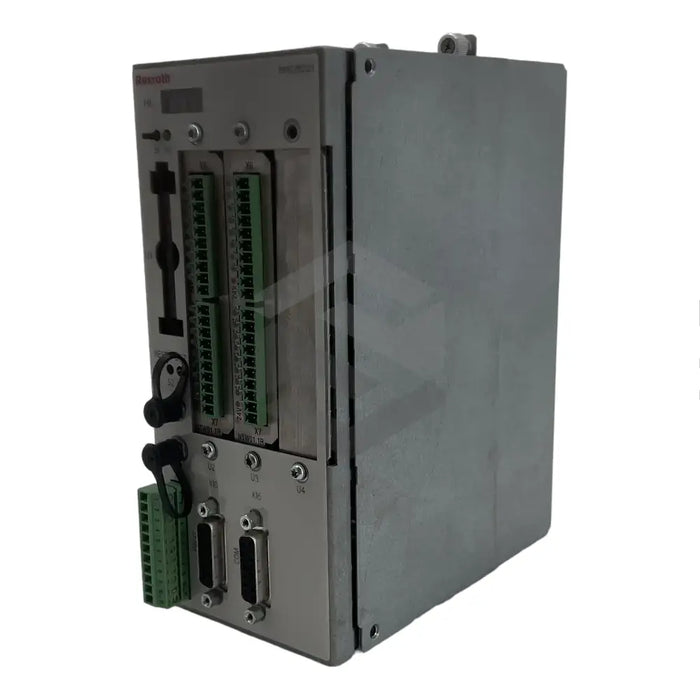

C image of 1070170290 | Main (Front Left)

1070170290

by Bosch Rexroth Indramat
$5,375.00 - $5,375.00
$5,375.00
$5,375.00 - $5,375.00
$5,375.00

In Stock, Ships 1 - 3 Days

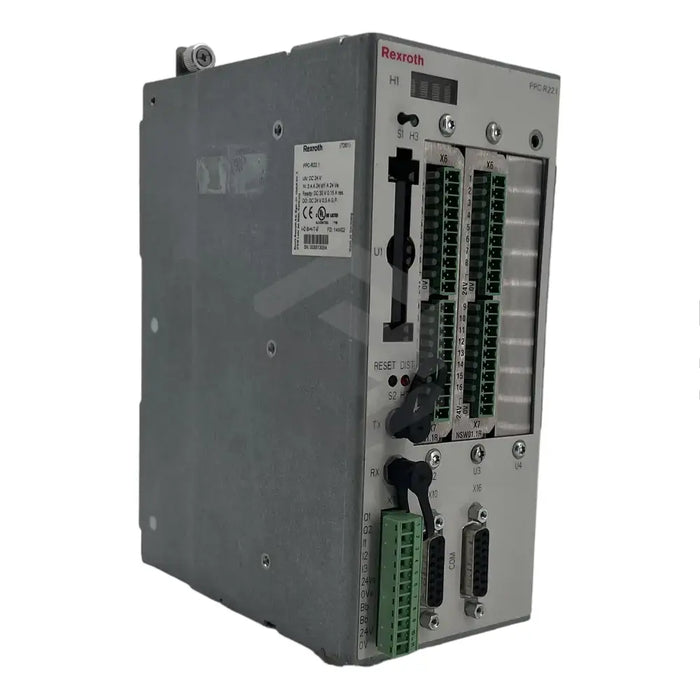

Product 1070170290 (PPC-R22.1N-T-N1-N2-NN-FW) is a premium offering by Bosch Rexroth Indramat, a leader in affordable, energy-efficient industrial automation solutions. This product illustrates their innovative approach to design and manufacturing. The 1070170290 (PPC-R22.1N-T-N1-N2-NN-FW) model is a programmable motion/logic control system, dubbed VisualMotion 10. It is capable of managing up to 40 digital drives, making it a robust solution for complex automation requirements. The control unit of the VisualMotion 10, the PPC-R22.1, features three expansion slots, with slots 1 and 2 containing the master and slave PLS modules respectively, and slot 3 left vacant. It also includes a potential EtherNet connectivity option for security against unwanted network access. Each optional PLS option card comes with 16 outputs, two mini-phoenix connectors, LED indicator, and offers 250mA current draw. Updated every 250 microseconds, these PLS outputs offer continuous, reliable operation. The device requires a 24V DC connection via the X1 port and consumes total current of 1.2A. It is to be installed in the first RMB rack with the Reco 02 I/O module. The communication between two adjoining RMB racks is facilitated by a local bus. Operating in conditions with up to 78% humidity levels, the device is safeguarded by an IP20 protection rating and functions optimally between 0 to 45 degrees Celsius. Weighing approximately 1.3kg, the control unit operates on GPP 10 firmware, offering multi-axis motion control with integrated logic functionality. Firmware has to be ordered separately using the respective FWA typecode.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Maximum Humidity Level

78%

Additional Features

Control up to 40 intelligent digital drives, 2 PLS modules per unit

Current Consumption

1.2 A

Weight

1.3 kg

PLS Module Features

16 outputs, 2 mini-phoenix connections, LED indicator, 250 mA of current draw, PLS outputs update every 250 microseconds
