1070170294

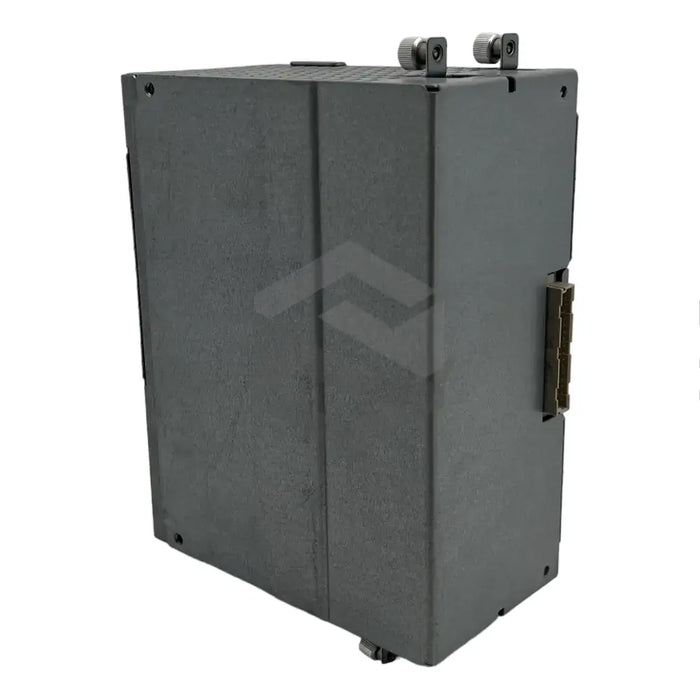

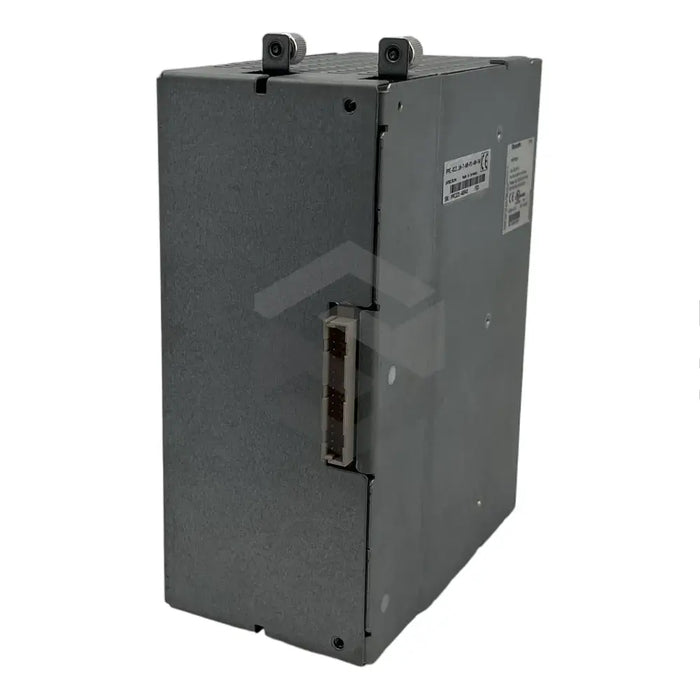

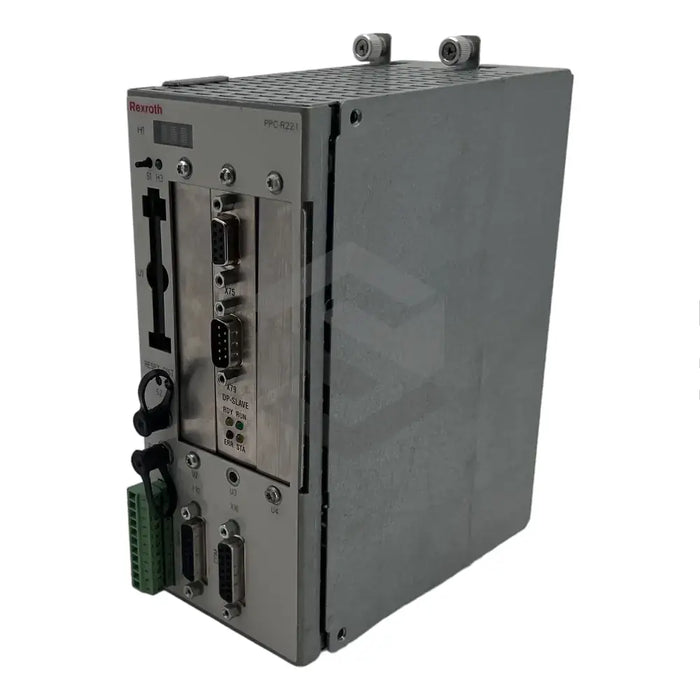

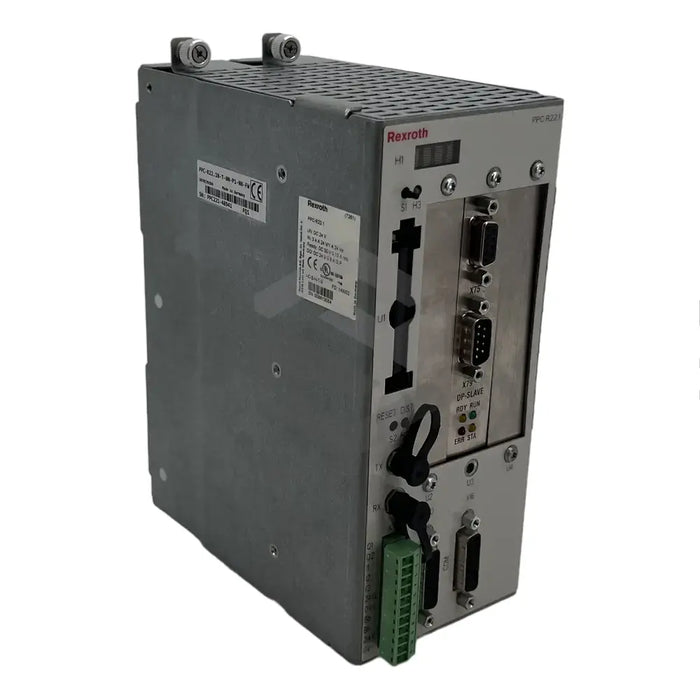

The 1070170294 (PPC-R22.1N-T-NN-P1-NN-FW) unit is a Bosch Rexroth Indramat product, built with a fiber optic transmitter, a fiber optic receiver, and a H2 distortion display for its SERCOS interface. Accommodating an exclusive socket for firmware installation, it also offers three supplementary sockets, each capable of fitting an axis processor module containing eight additional drives. This dual rack, although assistive during assembly cannot provide any form of control. The vertically-stacked module carrier should be housed in the switch cabinet, supporting the RECO module, secured by a 4A delayed action fuse for a 24V power supply. Enforced regulations for operation require an ambient temperature of 0-45°C, an atmospheric pressure within 86kPa to 106kPa, and 10% to 95% relative humidity, with no condensation allowed.
The unit's design includes three digital inputs and two freely potential digital outputs. It includes an 11-pin Phoenix socket known as the X11 connector. The ready-for-operation relay, protected against overcurrent, supports system surveillance, promising a minimum of 500,000 switching cycles. The nature of data transfer is determined by the application employing the unit. The CPU firmware hosts functions such as tool management, block preparation, and NC program processing organizes communication with the PLC assembly using the manufacturer's local bus. Accurate handling and initiation of the CNC module should be performed by skilled personnel, ensuring the electrotechnical compatibility requirements are met, to prevent operator injury due to unintended high voltage during operation.
