1070170296
Original price
$7,864.56
-
Original price
$7,864.56
Original price
$7,864.56
$7,864.56
-
$7,864.56
Current price
$7,864.56

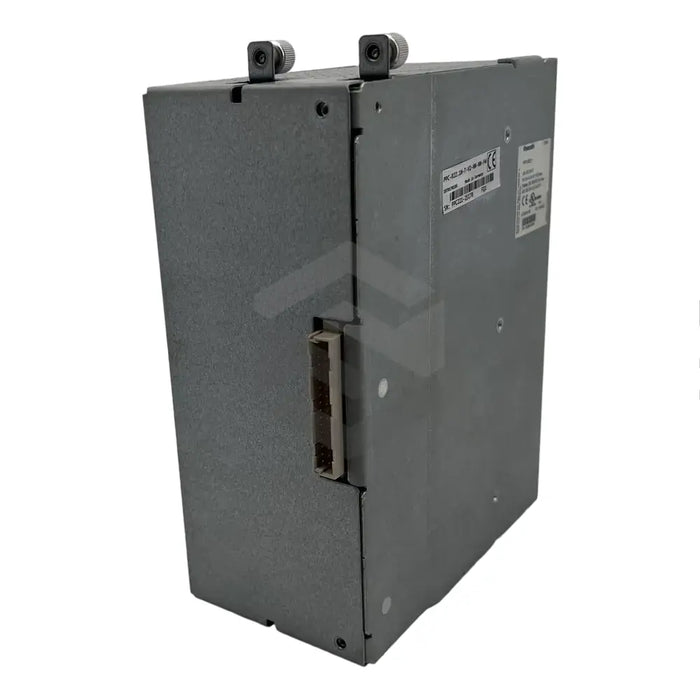

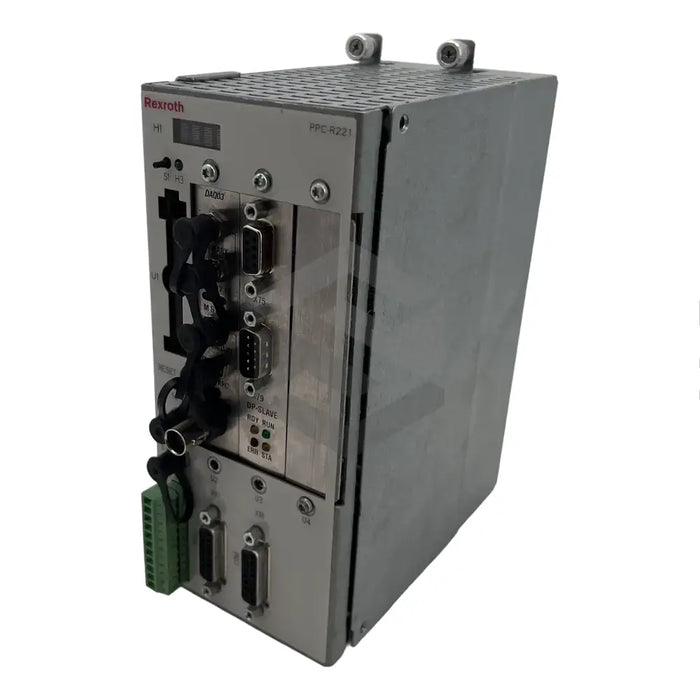

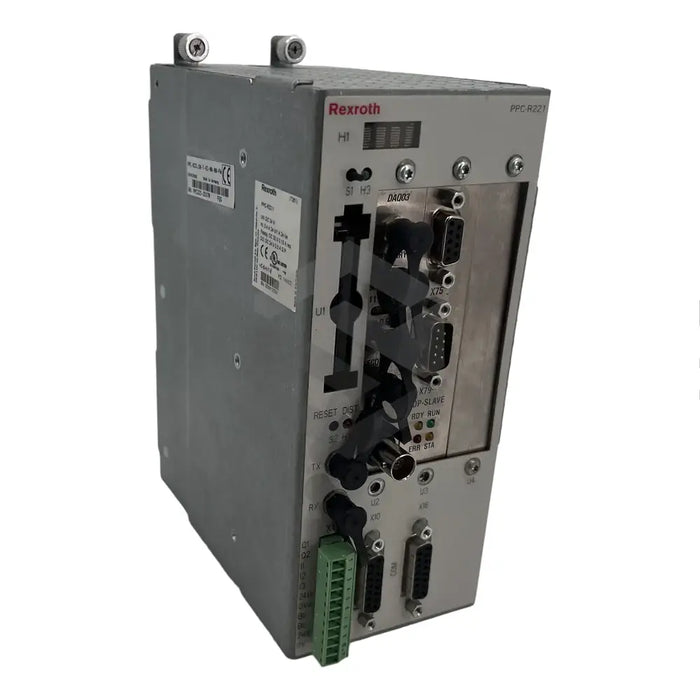

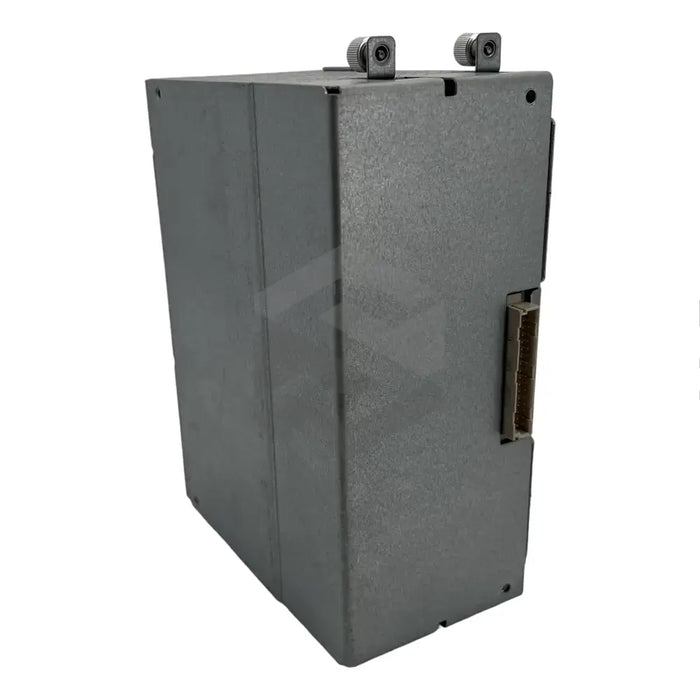

The 1070170296 (PPC-R22.1N-T-Q1-P1-NN-FW) control unit, manufactured by Bosch Rexroth Indramat, boasts assured operational reliability and safety. Its compatibility with a plethora of digital servo drives and the ability to service single/multiple axis drives and control tasks make it a versatile choice. Using manufacturer-provided cables only, this control can effectively communicate through its in-built VisualMotion system, housing OPC and DDE servers. The control system functions within a specific range of temperature, supports a humidity range of 5% to 78% (sans condensation), and operates under atmospheric pressure between 860hPa and 1080hPa. Handling and connection instructions must be strictly followed to avert any risk of injury.
The 1070170296 (PPC-R22.1N-T-Q1-P1-NN-FW) control unit is powered by a nominal voltage of 24VDC and can withstand a 4Vpp ripple within the accepted range. It features an internal real-time clock that precisely timestamps diagnostic logs, contributing to efficient troubleshooting. The digital inputs and outputs see a time delay of 50µs and 500µs respectively. The system needs to be properly grounded using a minimum 10mm2 ground wire. It emits noise within EN 55022 standards and uses 15-pin D-sub female connectors for its PROG and COM ports. With a tolerable transport atmosphere (660 to 1080hPa atmospheric pressure and 5 to 95% humidity without condensation), and weighing just 1.3kgs, it is a smart, handy solution for motion/logic control needs.
30 Day Warranty
Technical Specifications
