1070170298

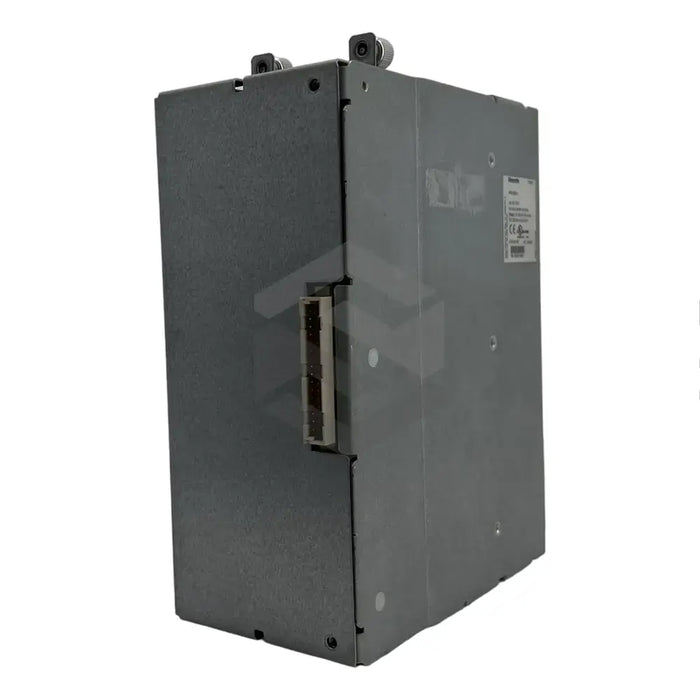

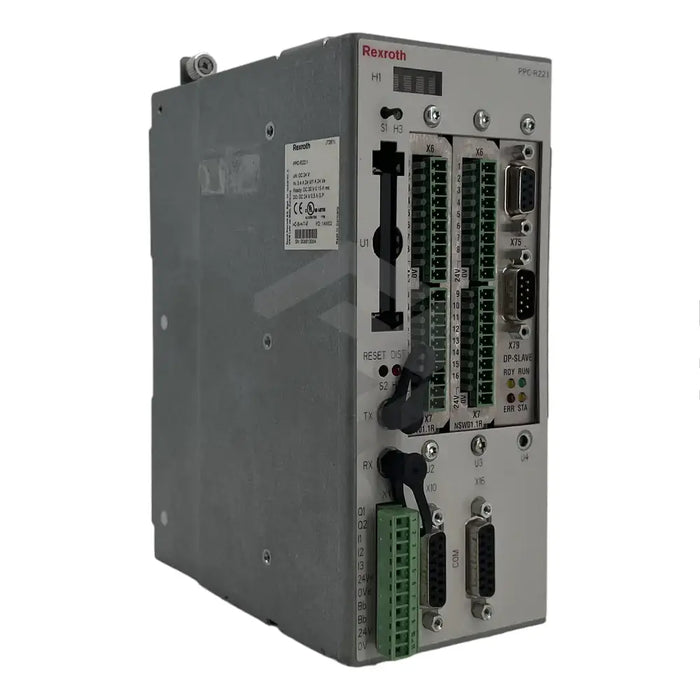

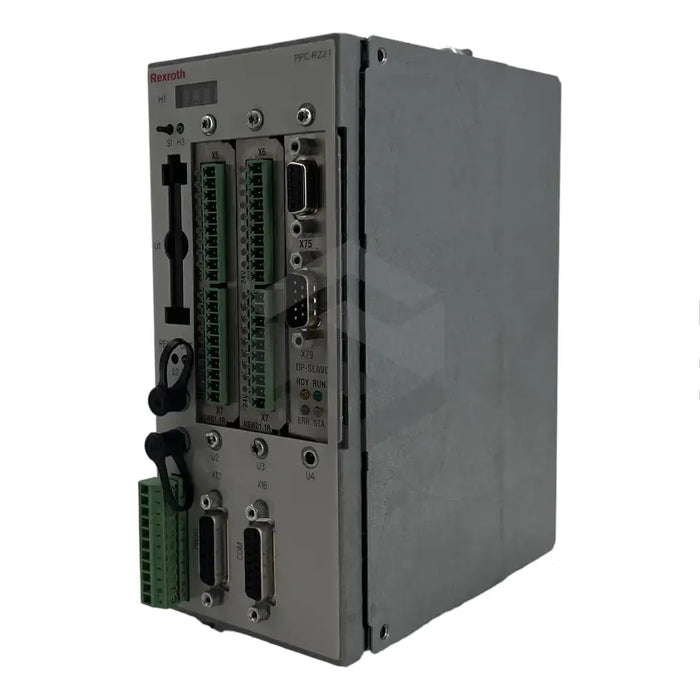

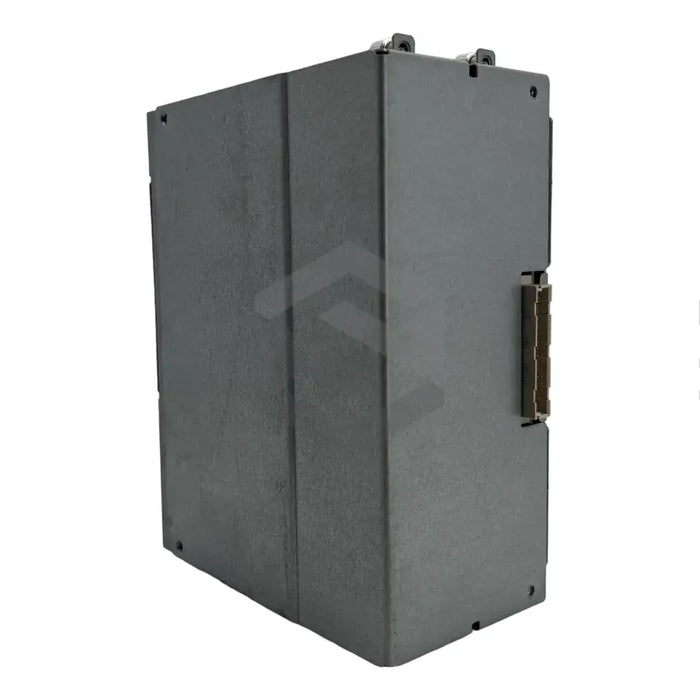

The 1070170298 (PPC-R22.1N-T-N1-N2-P1-FW) is a standout motion and logic control device crafted by Bosch Rexroth Indramat, esteemed for their high-quality automation equipment. It exudes unparalled efficacy with its Reco 02 form factor, enabling versatility in motion control, PLCs, and I/O modules. The device can be conveniently mounted in the first RMB rack, and it employs an inter-local Reco 02 back-plane bus communication system. The PPC-R22.1 VisualMotion control runs on a 24 VDC supplied dc-link voltage, and it aligns seamlessly with the IndraDrive, EcoDrive 03, and Diax 04 drive system.
The model 1070170298 (PPC-R22.1N-T-N1-N2-P1-FW) features a 32MB compact flash memory card for operational data storage while program variables are housed on the NVRam memory. Diagnostic messages can be accessed via the S1 push button, with the 4-digit H1 matrix display offering clear readings. The device comes with a SERCOS interface which guarantees steady real-time control-drive communication, and PROFIBUS-DP master module aids communication between the control and various input/output devices. Moreover, it is IP 20 protected and can function optimally within a 0 to +45 degree Celsius temperature range. The unit’s setup is completed with an onboard Ethernet support, a PLS master and slave module, and it employs the GPP 10 firmware module.
