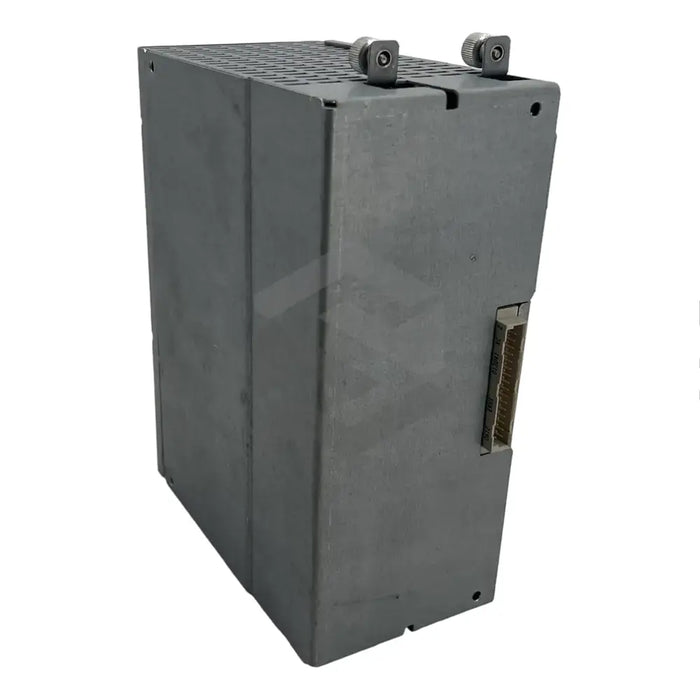

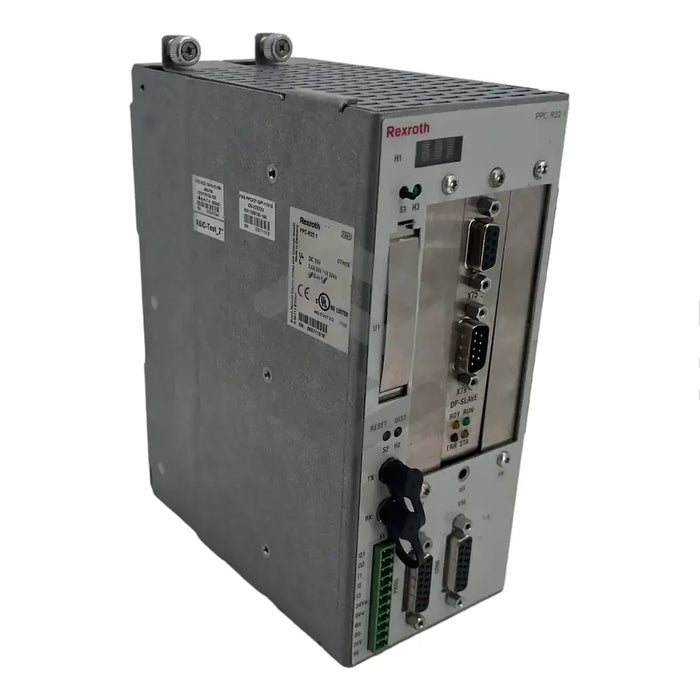

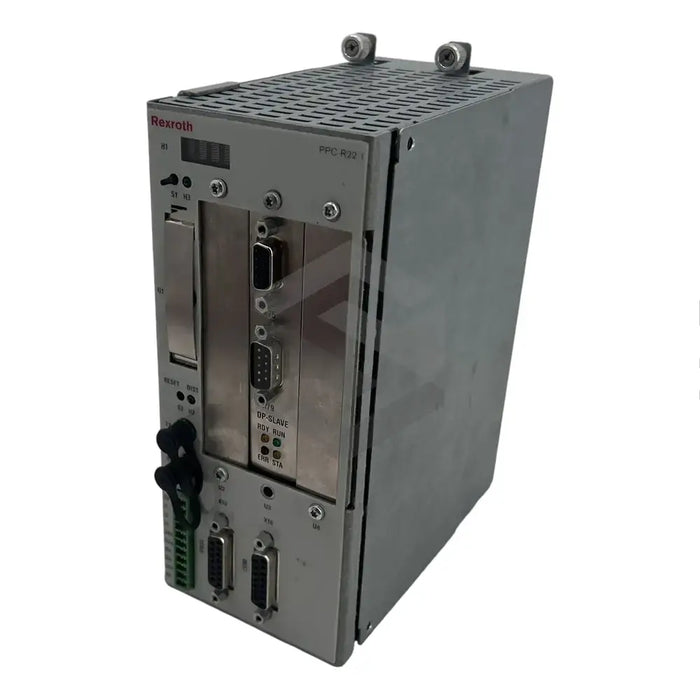

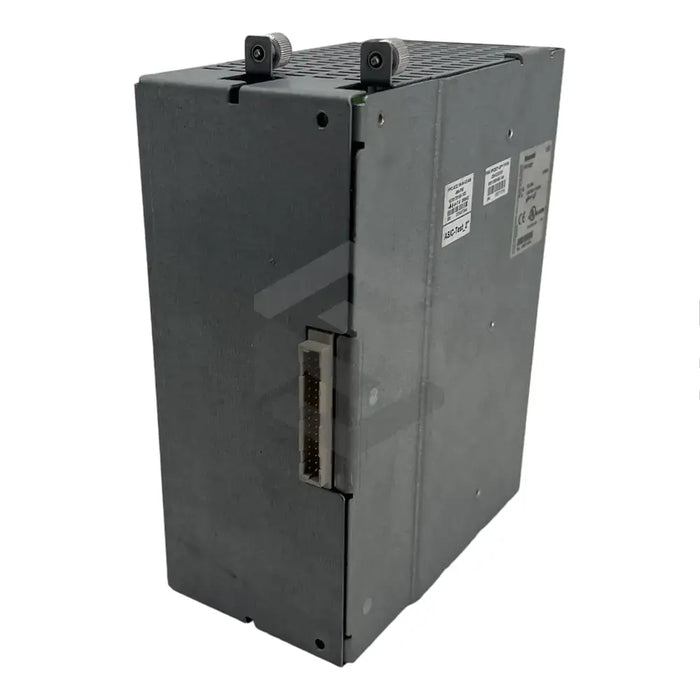

1070170307
The 1070170307 (PPC-R22.1N-N-NN-P1-NN-FW) is a product by Bosch Rexroth Indramat, renowned globally for manufacturing and servicing various industrial automation equipment. This product offers a PROFIBUS-DP master module with an input/output capacity of 64 bytes, facilitating effective communication between the control and other I/O devices. It's equipped with a nine-pin Profibus D-sub connector, functioning at temperatures ranging between 0 - 55 degree Celsius. The PPC-R22.1 control, programmable through the VisualMotion Toolkit (PC software), incorporates a GPP 10 firmware, enabling control over up to 40 intelligent servo drives.
Fitted with a 4-digit alpha-numeric matrix display, the 1070170307 (PPC-R22.1N-N-NN-P1-NN-FW) model displays motion and integrated PLC diagnostic messages. To ensure efficient operations, data is stored on the PFM01.1 compact flash memory card and the onboard NVRam memory. The controller also comes with a real-time clock and offers protection against solid particles larger than 12.5 mm, owing to IP 20 protection. The ambient temperature for operating the unit ranges between 0 to +45 degree Celsius, designed for maximum installation heights of 1500 meters above sea level. Weighing just 1.3 kg, the model comes without a memory expansion module.
