134F2972

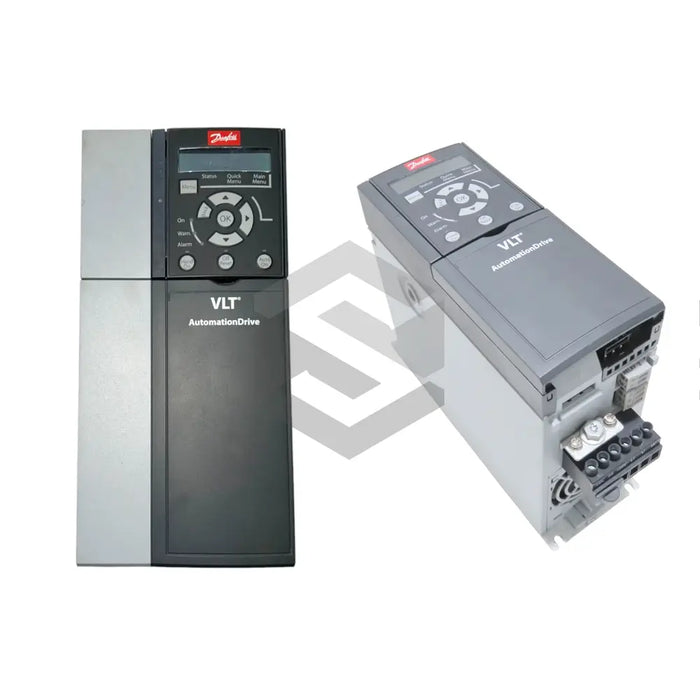

The Danfoss 134F2972 drive from the VLT FC 360 Automation Drives series is a compact frequency converter engineered for precise motor control in demanding industrial environments. This module, identified as part_number 134F2972 and manufactured by manufacturer Danfoss, delivers a Power Rating 0.75 kW (Horsepower 1.0 HP) while drawing an Input Voltage 380-480 VAC at Input Phase Three Phase. Weighing only Typical Weight 2.3 kg and featuring a Frame Size J1 footprint, it integrates seamlessly into control cabinets with an Enclosure IP20 Chassis. Conforming to industrial EMC standards, it incorporates an RFI Filter Class A2 (C3) to minimize line emissions and ensure electromagnetic compatibility. Early integration is facilitated by a Load Sharing Standard Control Card, and the internal circuitry benefits from a Pcb Coating Coated PCB to resist moisture and contamination.

Performance characteristics are optimized through precise current management, with a Continuous Current 2.2 A at 380-440 VAC and Continuous Current 2.1 A at 441-480 VAC, plus an Intermittent Overload Current 3.5 A (60 s) for short-term peak demands. The built-in Brake Chopper Built-in enables direct brake resistor interfacing, enhancing deceleration control. Efficiency is rated at Efficiency 97.2 %, resulting in minimal heat generation and an Estimated Power Loss 30.01 W at full load. The device supports a maximum cable cross section of 4 mm2 for all terminals—mains, motor, brake and load sharing—streamlining installation. Although it features Display No Display (No Blind Cover), comprehensive status indications and programmable fault signals ensure integration with higher-level automation systems.

Reliability is assured through active motor protection, continuous condition monitoring, and programmable start/stop logic tailored for conveyor systems, pumps, and fan applications. The IP20-rated chassis supports cabinet mounting in ambient temperatures from 0 to 50°C, ensuring stable operation across varied factory environments. Its robust design withstands typical industrial power disturbances while providing precise torque control and energy optimization functions. When paired with Danfoss automation platforms, the 134F2972 drive enables networked control, predictive maintenance, and seamless integration into SCADA or PLC architectures. This combination of compact design, advanced features, and proven durability makes the 134F2972 ideal for OEM machinery, material handling, and HVAC applications where reliability and efficiency are paramount.
