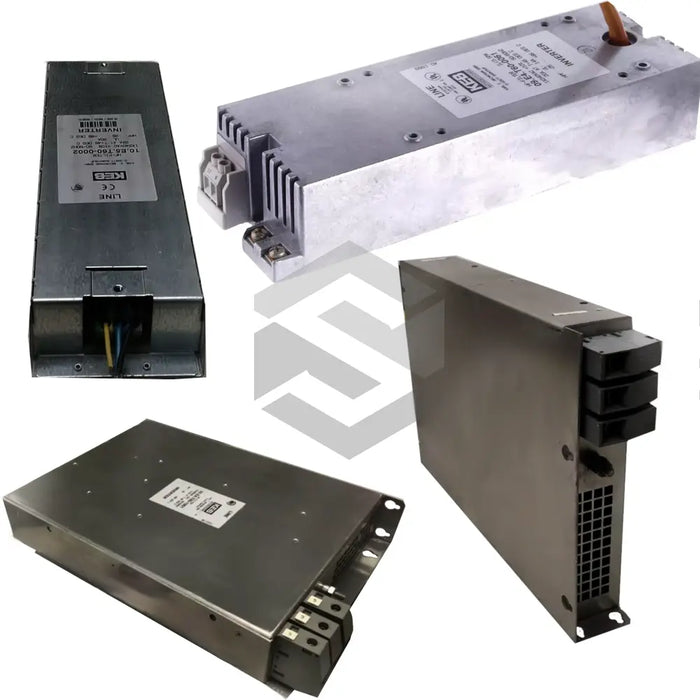

14.E5.T60-10F1

The KEB 14.E5.T60-10F1 is a robust Combiline EMC Filters solution engineered for industrial environments requiring stringent electromagnetic interference suppression. Manufactured by KEB, this model features a Voltage Rating of 400/480 V AC and a Current Rating of 20 A, delivering reliable performance across diverse applications. With a Suppression Degree of C1 and a Maximum Voltage tolerance of 528 V, it excels at handling transient overvoltages and grid fluctuations. The filter’s compact footprint—measuring 132 mm x 352 mm x 50 mm—and lightweight 1.5 kg chassis ensure efficient use of panel space and ease of installation. Designed to operate from -10 °C to 45 °C, the 14.E5.T60-10F1 maintains consistent performance under varying thermal conditions.

Technical capabilities of the 14.E5.T60-10F1 are highlighted by its Low-leakage current IT-HF filter architecture, which limits ground leakage to 4 mA while maintaining high suppression efficiency. The filter supports cable spans up to 10 m, enabling flexible equipment layouts without compromising EMI control. Its Power Loss is rated at 14 W, optimizing energy efficiency during continuous operation. Precision-engineered mounting points—specified as 335 mm x 275 mm—align with standard rack designs for rapid integration. The Housing D enclosure and Book-style side-mount design simplify wiring routing, and its robust construction withstands the rigors of industrial settings.

Operational features of this EMC filter provide immediate benefits in noise-sensitive applications. The Suppression Degree C1 classification ensures effective attenuation of high-frequency emissions, enhancing overall system stability. The broad Operating Temperature Range from -10 °C to 45 °C accommodates both indoor and moderately challenging outdoor environments. Minimal Power Loss reduces internal heat buildup, which, combined with the filter’s natural convection cooling, maintains component longevity and reduces maintenance cycles. The compact dimensions and lightweight design facilitate retrofitting into existing panels with minimal disruption.

For system integrators, the 14.E5.T60-10F1 delivers seamless compatibility with KEB’s broader automation portfolio, including drives, controllers, and motor interfaces. Its ability to handle 20 A loads and maintain low leakage current makes it ideal for use in variable-frequency drive systems, machine tools, conveyor controls, and packaging machinery. When paired with KEB Automation components, the filter enhances electromagnetic compatibility across entire production lines, ensuring compliance with international EMI standards. By integrating this high-performance filter into your industrial automation architecture, you achieve reliable operation, reduced downtime, and enhanced electrical safety.
