15.F4.CNE-A001

Name: 15.F4.CNE-A001
Brand: KEB
Price: 2592.1 USD
Availability: InStock

by KEB

$2,592.10 - $2,592.10

$2,592.10

$2,592.10 - $2,592.10

$2,592.10

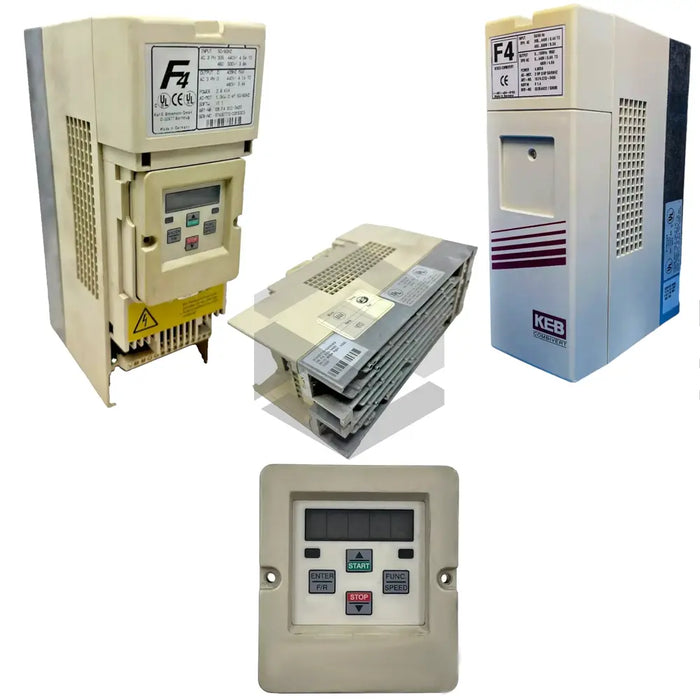

The 15.F4.CNE-A001 frequency inverter from KEB within the F4 Combivert Frequency Inverters series is designed for versatile, high-performance industrial automation. It supports a motor power of 11 kW and delivers an output nominal power of 17 kVA with a nominal output current of 24 A and an input of 26.5 A. Engineered for efficiency, it exhibits a low power loss of 260 W and operates reliably with a maximum heat sink temperature of 73°C. Additionally, it features key specifications such as 15 HP, a maximum braking current of 17 A, a short-time current of 36 A, and a max operating frequency of 12 kHz, along with a rated operating frequency of 4 kHz, under a voltage rating of 380 VAC. Enhanced safety is ensured with an IP20 protection rating and a maximum permissible mains fuse rating of 35 A, while the device offers flexible output options including a reconfigurable relay output and a setpoint input, all secured by comprehensive password protection. Software support is provided by Combivis F5 and a typical braking resistor of 56 ohms aids in optimal performance.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Horsepower

15 HP

Max. Braking Current

17 A

Max. Operating Frequency

12 kHz

Max. Short-time Current

36 A

Power

11 kW

Product Brand

KEB

Typ. Braking Resistor

56 ohms
