19.F5.A1H-35GA

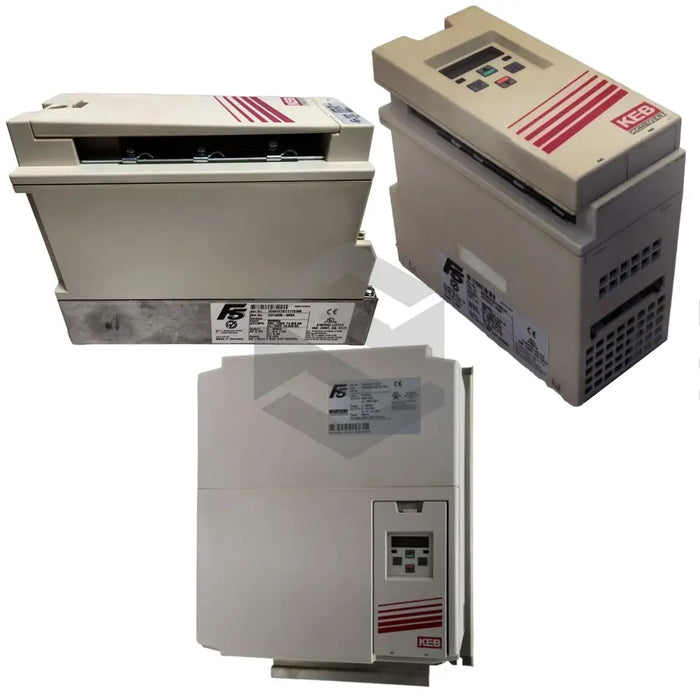

The 19.F5.A1H-35GA drive by KEB is a robust addition to the F5 Combivert Axis Drives portfolio, engineered for high-performance industrial automation. This drive delivers a rated output power of 42 kVA and supports a Rated motor power of up to 30 kW, enabling it to efficiently control a wide range of motor applications. It accepts a Supply voltage of 305...528 VAC (nominal 480 V) at a frequency of 50/60 ±2 Hz, and operates with a Supply voltage frequency tolerance to meet global standards. The Inverter Size Code of 19 and a Housing Form Factor Code of H provide a compact footprint without compromising on thermal management. Tailored for demanding environments, this axis drive integrates seamlessly into industrial systems where reliability and power density are critical.

Boasting advanced electrical characteristics, the 19.F5.A1H-35GA achieves a Rated input current 400VAC of 66 A and a Rated input current 480VAC of 57 A, while delivering a Rated output current 400VAC of 60 A and Rated output current 480VAC of 52 A. To accommodate transient demands, it sustains a Peak current (30 seconds) of 90 A, with an Over current fault (E.OC) trip level set at 108 A for robust protection. The drive’s General Max Motor Power (HP) rating of 40 HP (equivalent to Max Motor Power (HP) - 230V - Unit B of 40 HP) underscores its capability to drive heavy loads. Utilizing a Control Stage based on the Standard Board - all motor types, it ensures precise torque and speed regulation across various motor classes.

Operational efficiency and safety are enhanced through integrated features such as the Installed Accessories braking transistor, which delivers dynamic braking control and improved deceleration performance. The drive’s Control Board Type of Standard Board simplifies parameter setup and supports a broad spectrum of motor feedback options. With Unit Hardware revision B, the system benefits from optimized thermal dissipation and component durability. Installation is streamlined by the UL minimum wire gauge requirement of 12 AWG, reducing the complexity of power connections. The combination of an H housing code and standardized mounting provisions further accelerates deployment in production lines.

Designed for seamless integration, the Combivert F5 series interfaces directly with PLCs and networked control systems, facilitating real-time monitoring and diagnostics. Its compatibility with standard fieldbus protocols and scalable architecture makes it an ideal solution for packaging machines, conveyor systems, and high-speed assembly lines. The compact design of the 19.F5.A1H-35GA homogeneously aligns with existing drive cabinets and motor controllers. Whether in processing plants or precision manufacturing, this axis drive delivers the reliability, efficiency, and flexibility demanded by modern industrial automation.
