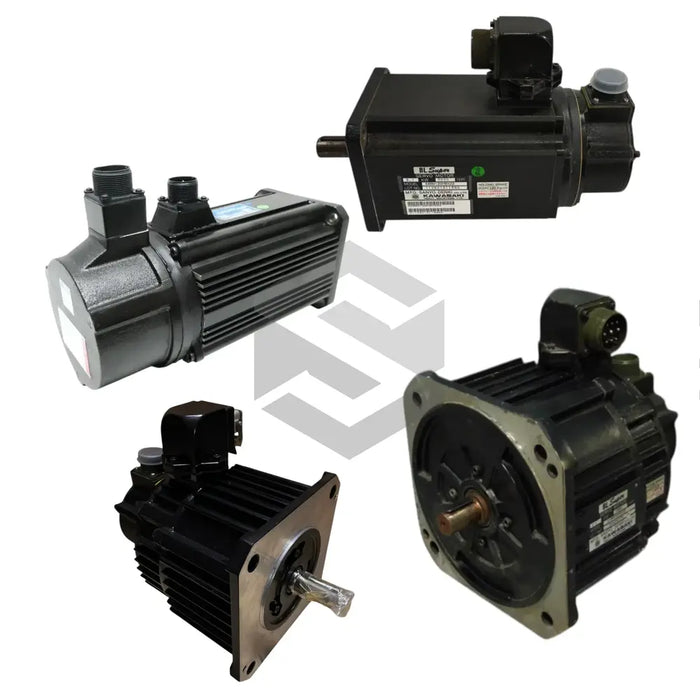

S image of 20BM040HXDT0

20BM040HXDT0

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Sanyo Denki 20BM040HXDT0 motor from the BL Super Servo Motors series is a NEMA 20 frame servo motor offering a holding torque of 40 oz-in and a precise step angle of 1.8°. It features a bipolar/unipolar connection type, 2.0 A current per phase and 1.10 Ω resistance per phase, with an inductance per phase of 2.5 mH and a rotor inertia of 17 g-cm². The compact design measures 2.0 in in length, with a 0.250 in shaft diameter, and includes 8 leads across 2 phases. This servo motor operates reliably from -20 °C to +50 °C, making it ideal for industrial automation environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Connection Type

Bipolar / Unipolar

Current Per Phase

2.0 A

Frame Size

NEMA 20

Holding Torque

40 oz-in

Inductance Per Phase

2.5 mH

Length

2.0 in

Number Of Leads

8

Number Of Phases

2

Operating Temperature Range

-20°C to +50°C

Resistance Per Phase

1.10 Ω

Rotor Inertia

17 g-cm²

Shaft Diameter

0.250 in

Step Angle

1.8°
