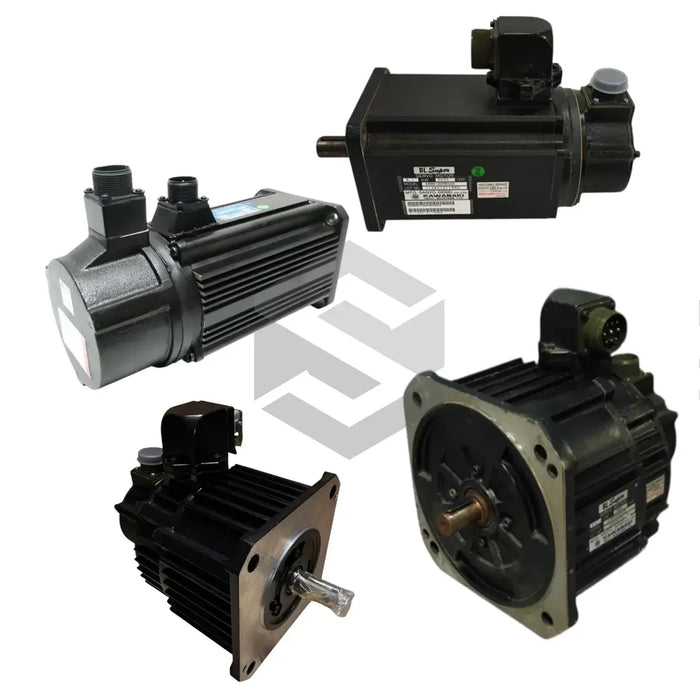

S image of 20BM090BBDT0

20BM090BBDT0

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Sanyo Denki 20BM090BBDT0 is a high-performance servo motor from the respected BL Super Servo Motors series, manufactured by Sanyo Denki. This brushless servo motor delivers a rated power of 1.0 kW and a rated speed of 3000 rpm, generating a continuous rated torque of 3.2 Nm for precision motion control. Designed for industrial automation and CNC applications, the 20BM090BBDT0 offers reliable performance in tasks requiring moderate-load capabilities and rapid response times.

Featuring a robust 230 V three-phase input and a current draw of 5.2 A, this flange-mounted motor incorporates an Incremental Encoder feedback device for accurate position sensing and differential line driver outputs for noise-resistant signal transmission. The motor’s frame size is 90 mm, and it weighs approximately 4.5 kg, making it compact yet powerful. Uniquely, the 20BM090BBDT0 includes a With Holding Brake option to prevent unwanted shaft movement and a built-in Thermal Protection circuit that safeguards against overheating during extended operation. Additionally, it meets the JIS B 3502 industrial classification for Vibration Resistance, ensuring operational stability in high-vibration environments.

Engineered for durability and compatibility, the motor is rated IP65 for dust-tight and water-resistant operation, allowing it to perform reliably in harsh industrial settings. Its tolerance to 20% to 80% non-condensing relative humidity and built-in thermal safeguards ensure consistent performance in varying ambient conditions. The flange mounting design simplifies integration into existing automation systems, while the brushless configuration minimizes maintenance requirements. By combining precise torque output, advanced feedback, and robust environmental protection, the 20BM090BBDT0 enhances system efficiency and uptime, making it an ideal choice for demanding industrial applications.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Brake Option

With Holding Brake

Current

5.2 A

Feedback Device

Incremental Encoder

Frame Size

90 mm

Mounting

Flange

Protection Class

IP65

Rated Power

1.0 kW

Rated Speed

3000 rpm

Rated Torque

3.2 Nm

Relative Humidity Tolerance

20% to 80% (non-condensing)

Thermal Protection

Built-in

Type

Brushless Servo Motor

Vibration Resistance

JIS B 3502 industrial classification

Voltage

230 V

Weight

Approx. 4.5 kg
