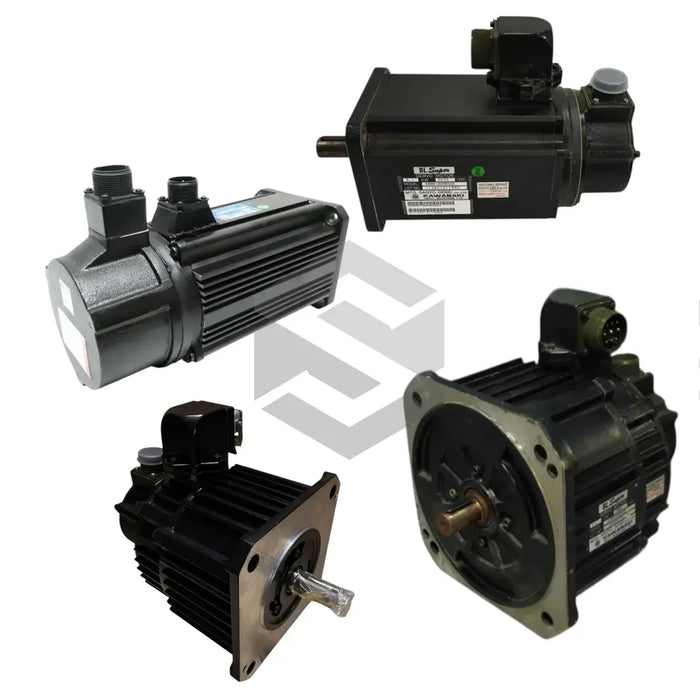

S image of 20BM090MXP7G

20BM090MXP7G

by Sanyo Denki
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Sanyo Denki 20BM090MXP7G from the BL Super Servo Motors series is a high-performance BLDC (Brushless DC Motor) with a 90 mm frame, a rated voltage of 310 VDC, and 750 W output. Delivering 2.4 Nm of rated torque at 3000 rpm and a maximum torque of 6.1 Nm, it features an 8-pole rotor with a 2500 PPR incremental encoder for precise closed-loop control. Capable of a 7.5 A peak current and rotor inertia of 0.00045 kg·m², the 3.6 kg motor offers IP65 protection and Class F (155°C) insulation. Its robust design ensures reliable performance in harsh industrial automation applications such as robotics, CNC machinery, and conveyors.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Encoder Resolution

2500 PPR

Encoder Type

Incremental

Frame Size

90 mm

Insulation Class

Class F (155°C)"​

Maximum Torque

6.1 Nm

Motor Type

BLDC (Brushless DC Motor)

Number Of Poles

8

Peak Current

7.5 A

Protection Class

IP65

Rated Power

750 W

Rated Speed

3000 rpm

Rated Torque

2.4 Nm

Rated Voltage

310 VDC

Rotor Inertia

0.00045 kg·m²

Weight

3.6 kg
