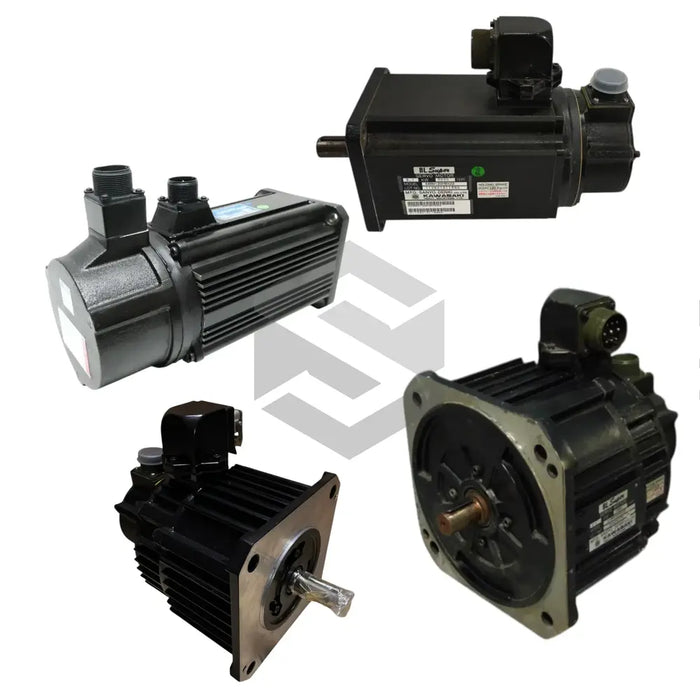

S image of 20BM121FXPR1

20BM121FXPR1

by Sanyo Denki
$1,232.91 - $1,232.91
$1,232.91
$1,232.91 - $1,232.91
$1,232.91

In Stock, Ships 1 - 3 Days

The 20BM121FXPR1 from Sanyo Denki has a 120 mm frame size and a 3000 rpm rated speed. Part of the BL Super Servo Motors series, it delivers 1.2 kW power and 3.82 Nm torque. This motor provides 12 Nm peak torque and operates at 400 V with 2.8 A stall current.

It offers IP65 protection (excluding the shaft) and a keyed shaft design for robust coupling. With 0.0012 kg·m² rotor inertia, it ensures smooth start-stop motions. Its Class F insulation withstands up to 155 °C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Stall Current

2.8 A

Environmental Protection

1 (IP65, excluding shaft)

Feedback Device

X (No feedback/Resolver)

Frame Size

120 mm

Insulation Class

Class F (155°C)"​

Magnet Material

Neodymium

Peak Torque

12 Nm

Rated Power

1.2 kW

Rated Speed

3000 rpm

Rated Torque

3.82 Nm

Rotor Inertia

0.0012 kg·m²

Shaft Option

R (Keyed shaft)

Stack Length

1 stack

Voltage

400 V

Winding Code

F
