2AD100D-B05OA7-AS03-D2N1

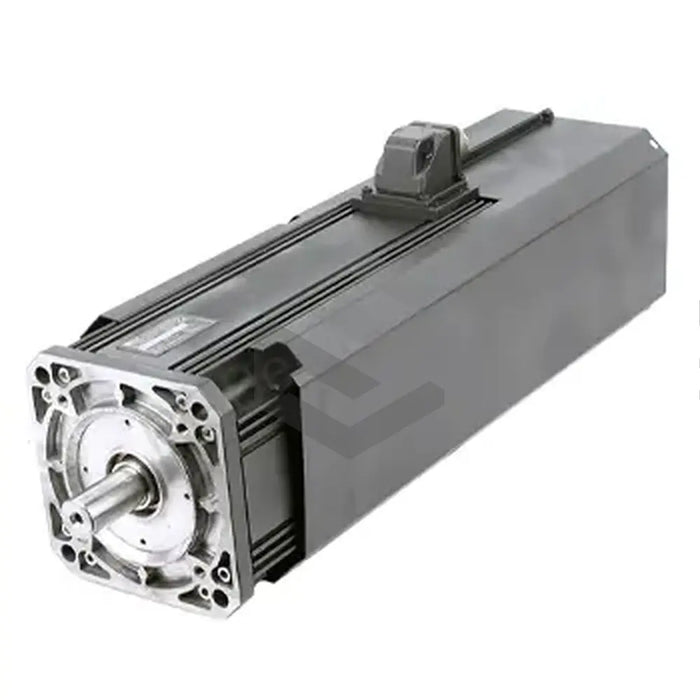

The Bosch Rexroth Indramat 2AD100D-B05OA7-AS03-D2N1 is an efficient AC servo motor from the 2AD series, designed with class F insulation. Operating at a standard speed of 1500 rpm and generating a nominal power of 7.5 kW, it features a 230 V radially blown fan for effective cooling, circulating air at 230 m3/h. Inscribed with a balanced key design on its shaft, which is sealed by a rubbing-type ring, the unit operates optimally at speeds up to 9000 rpm. Noteworthy specifications include a thermal time constant of 45 minutes, 35 A of operating current, 48 Nm of torque production, and a voltage rating of 173 V. The motor lacks a holding brake, and operations outside the 0 to + 45 degrees Celsius range may impact performance. Its feedback technology ensures accurate rotor position detection. It weighs 60 kg and should not be installed above 1000 MSL. Delivery is available worldwide.
