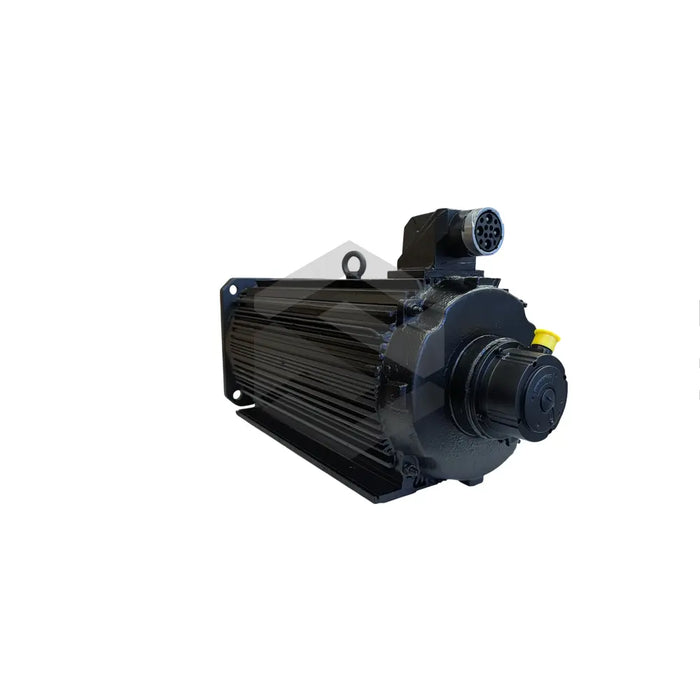

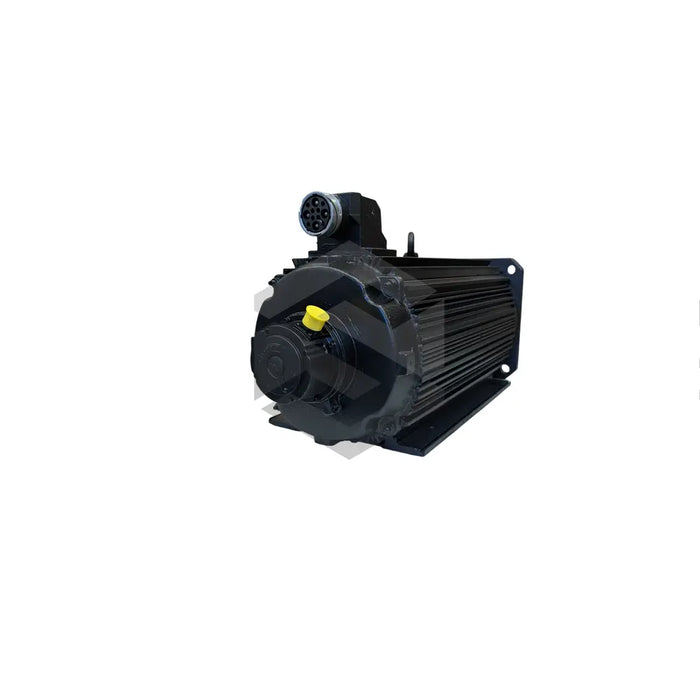

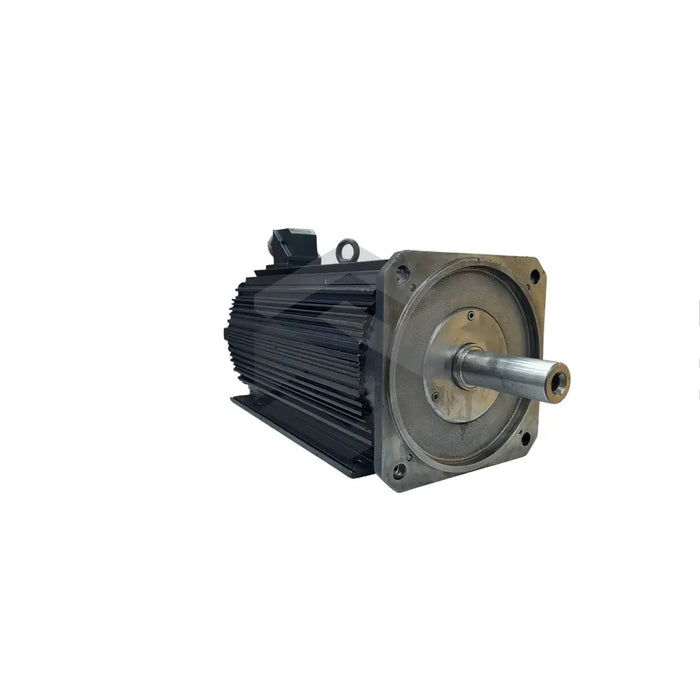

2AD134D-B35OB1-CS06-B2N1
The Bosch Rexroth Indramat 2AD134D-B35OB1-CS06-B2N1 is a robust AC induction motor in the 2AD 3-Phase Induction Motors series by Bosch Rexroth Indramat designed for high-reliability industrial use. This asynchronous motor carries the Product Type designation of AC Induction Motor and the Motor Designation code of 2AD, reflecting its alignment with the proven 2AD Series architecture. With a Motor Size Code of 134 and a Motor Length Code of D, this model achieves a balance between torque output and footprint. The motor is configured without holding brake, focusing on streamlined operation without the added complexity of braking systems. It features a Digital servo feedback device to ensure precise positional feedback and integration with modern control systems.
Technical capabilities of the 2AD134D-B35OB1-CS06-B2N1 include a Winding Code of CS for optimized electromagnetic performance across variable loads. The motor utilizes Standard Bearings to provide dependable rotational support and minimal maintenance in continuous-duty applications. Designed for environments from 0 to 40 �C, its Ambient Temperature Range ensures stable operation in a variety of industrial settings. With a Vibration Grade of R, the motor maintains low vibration under full-load conditions, contributing to quieter operation and extended component life. The absence of a holding brake reduces inertia and simplifies the electrical drive requirements.
Operational features emphasize efficient thermal management and mounting versatility. Equipped with an Axial Blower Cooling Type, this motor maintains consistent internal temperatures even under prolonged peak load conditions. The Mounting options include both Flange and foot mounting, facilitating straightforward installation in tight or multi-axis configurations. Its Shaft Type, specified as without shaft seal but balanced with an entire key, delivers smooth power transmission while minimizing the risk of imbalance-induced wear. The motor omits a dedicated Shaft End (Side B) extension, simplifying coupling arrangements and reducing overhang moments. With its integrated Digital servo feedback, operators benefit from real-time monitoring of speed and position without external encoders.
Integration is streamlined through the motor’s Power Connection Direction oriented to Side B, with a Power Plug (Blower with plug) Power Connection Type positioned at the Top for convenient cable routing. The design omits a secondary shaft end, focusing mechanical interactions on the primary output interface. Its compatibility with standard drive controllers and servo amplifiers makes it suitable for machine tools, material handling systems, and automation cells. Engineers will appreciate the 2AD134D-B35OB1-CS06-B2N1’s balance of performance, reliability, and straightforward integration into existing 2AD Series installations.
