2AD160C-B35OB2-BS03-B2N1

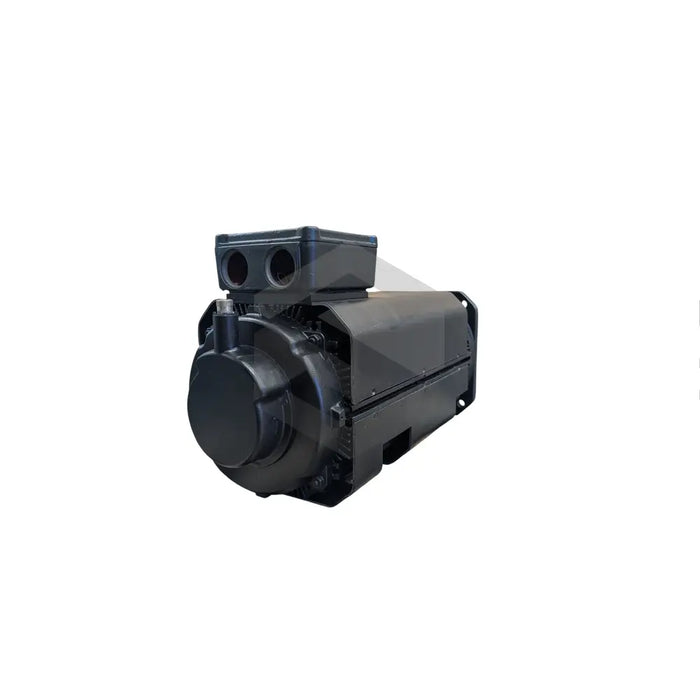

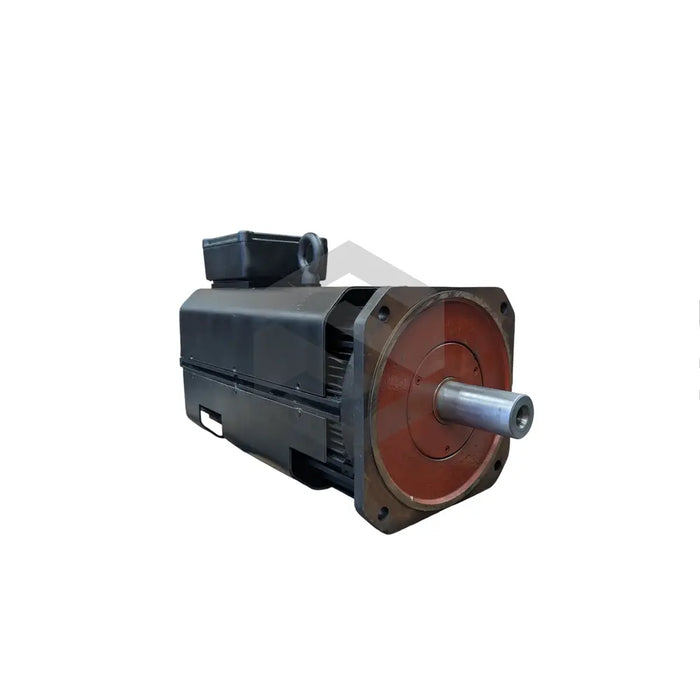

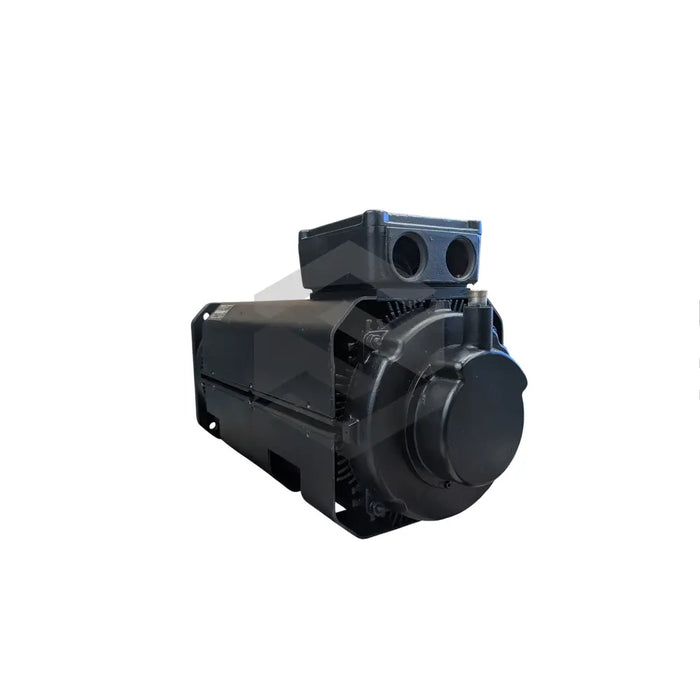

The Bosch Rexroth Indramat 2AD160C-B35OB2-BS03-B2N1 AC induction motor from the 2AD 3-Phase Induction Motors series delivers robust asynchronous performance designed for industrial automation applications. This 2AD Series motor features a Motor Size Code of 160 and a Motor Length Code of C, providing a balanced blend of torque and compactness. The unit operates without a holding brake, reducing maintenance complexity while offering reliable start-stop cycling. Its high-resolution feedback device ensures precise speed and position control, making it suitable for demanding conveyor, pump, and fan drive systems. With both flange and foot mounting options, integration into existing machine frames is straightforward, simplifying system upgrades and retrofits.
Detailed technical specifications define the motor’s capabilities with clarity. The motor is designated as an AC Induction Motor with Standard Bearings to ensure durability under continuous operation. Cooling is provided by an Axial Blower that maintains optimal windings temperature across an Ambient Temperature Range of 0-40 Degrees Celsius. The shaft type is specified as without shaft seal, balanced with entire key, and the side B shaft end is without shaft end, supporting direct coupling or flexible coupling arrangements. Power is routed through a Terminal Box positioned at the Top, with connection directed to Side B to accommodate space-constrained installations. The winding is coded BS, corresponding to standard insulation class and thermal tolerance.
Operational features emphasize efficiency and reliability under industrial conditions. The motor’s Vibration Grade R rating ensures minimal mechanical resonance during high-speed operation, extending bearing life. Without an electromagnetic brake, the motor reduces electrical consumption and eliminates brake adjustment routines. High-resolution motor feedback supports closed-loop control, enhancing dynamic response and precision. The flange and foot mounting flexibility allows both horizontal and vertical orientations, and the robust axial blower cooling maintains consistent performance during continuous duty cycles. Standard bearings simplify maintenance schedules, and the balanced shaft design minimizes torsional vibration.
System integration is expedited by the motor’s clear power connection layout and standardized mounting footprint. The 2AD160C-B35OB2-BS03-B2N1 motor is compatible with common variable frequency drives (VFDs) and PLC control systems for seamless automation integration. Its modular design supports retrofit projects in packaging lines, material handling conveyors, and HVAC fans. The top-mounted terminal box and side-B connection orientation reduce cable routing complexity, making this motor an ideal choice for OEMs and system integrators seeking dependable performance in harsh manufacturing environments.
