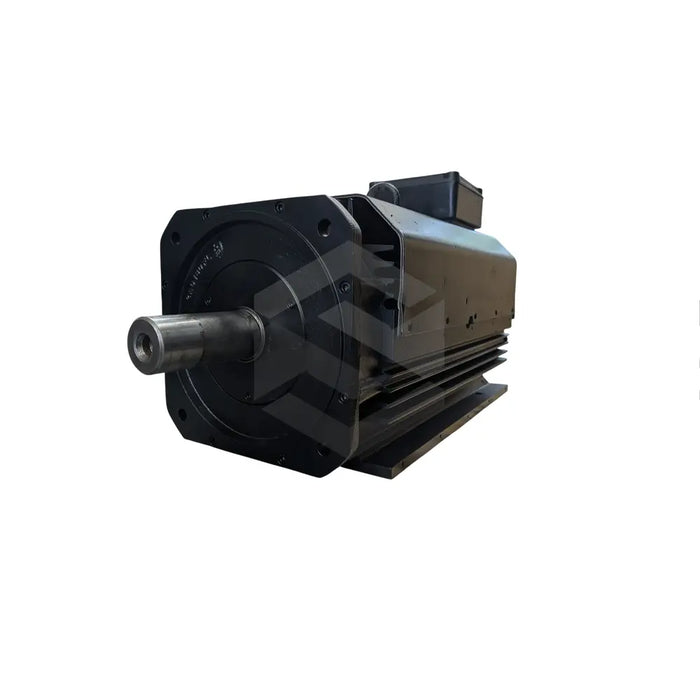

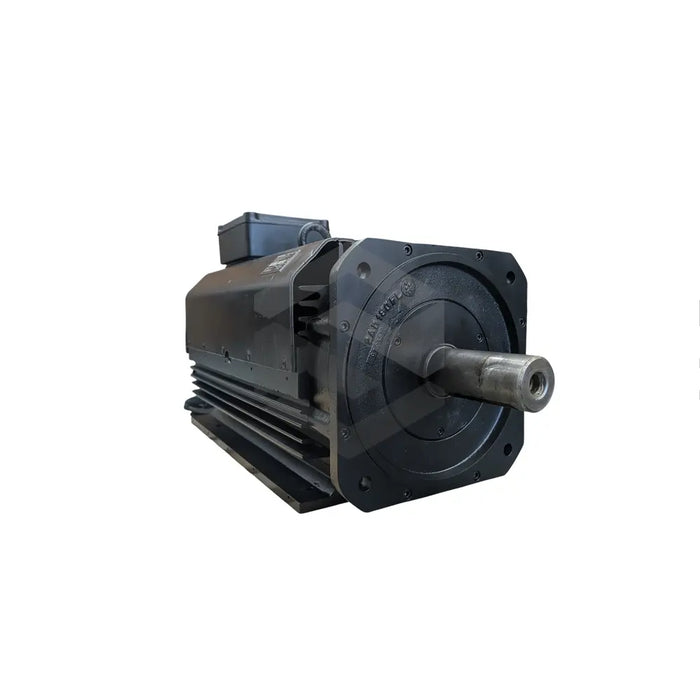

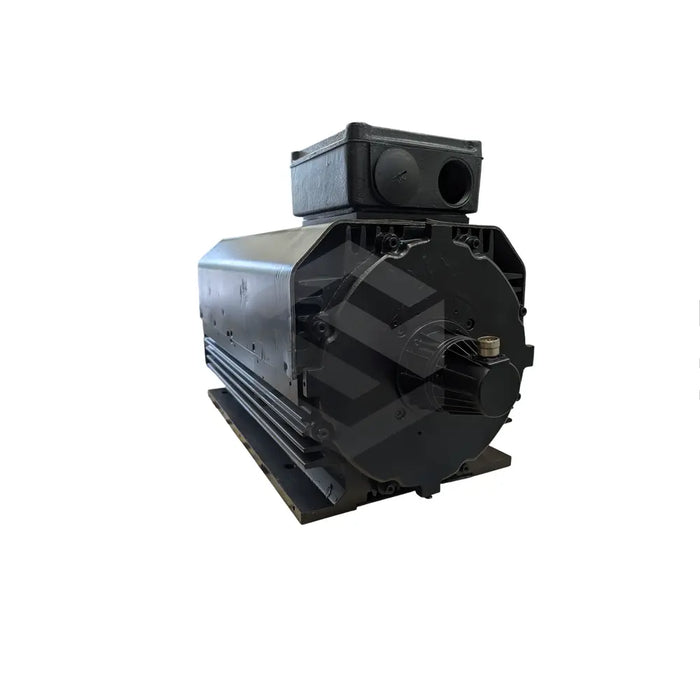

2AD180C-B35OB1-BS23-B2N1
The Bosch Rexroth Indramat 2AD180C-B35OB1-BS23-B2N1 AC induction motor from the 2AD 3-Phase Induction Motors series represents a robust asynchronous drive solution engineered for industrial automation. Manufactured by Bosch Rexroth Indramat, this Product Type: AC Induction Motor delivers consistent torque and speed performance across a broad range of operational scenarios. Its designation as an asynchronous motor with a Motor Size Code: 180 and Motor Length Code: C highlights the optimized dimensions chosen for compact machine layouts without compromising power density. The motor’s design integrates a high-resolution feedback device to support precise control loops and position monitoring. Engineers will appreciate the combination of rugged industrial design and flexible mounting options in a single, standardized package.
Technical specifications for the 2AD180C-B35OB1-BS23-B2N1 motor are extensive and detailed. It features Bearings: Standard configurations suited for general industrial loads and a Cooling Type: Axial Blower that ensures effective heat dissipation during continuous operation. The motor utilizes a Winding Code: BS pattern to achieve the desired electrical characteristics, and a Vibration Grade: R rating to minimize mechanical resonance under high-speed conditions. Environmental limits are specified as Ambient Temperature Range: 0-40 Degrees Celsius, ensuring reliable duty cycles within standard factory climates. The unit supports both Flange and foot mounting arrangements, enabling integration into diverse machine frames. Additionally, the design omits a shaft seal and provides a balanced keyway as indicated by Shaft Type: Without shaft seal, with balanced with entire key, simplifying maintenance and shaft coupling.
Operational performance is enhanced by an Electrically released brake system that facilitates quick stopping and holding torque for vertical or incline axis applications. Power and signal connectivity are consolidated through a Terminal Box at the Power Connection Position: Top, while the Power Connection Direction: To Side B orientation reduces cable routing complexity in confined cabinets. The Feedback Device: High-resolution motor feedback offers precise speed and position data, which is critical for closed-loop servo applications. The absence of a protruding shaft end on Shaft End (Side B): Without shaft end further reduces potential interference points around the motor enclosure. This combination of brake capability, cooling efficiency, and feedback accuracy supports dynamic responses and repeatable performance in demanding cycles.
System integration of the 2AD180C-B35OB1-BS23-B2N1 is streamlined through compatibility with standard AC drive controllers and Bosch Rexroth drive electronics, enabling advanced features such as vector control and predictive diagnostics. Its dual mounting options and top-entry power connection facilitate rapid installation in conveyor systems, packaging machines, and CNC tooling platforms. The motor’s durable construction and precise feedback make it ideal for material handling, robotic indexing, and general automation tasks where reliability and repeatability are paramount. Aligning with the 2AD 3-Phase Induction Motors series, this unit delivers a scalable solution for medium- to high-power industrial motor applications.
