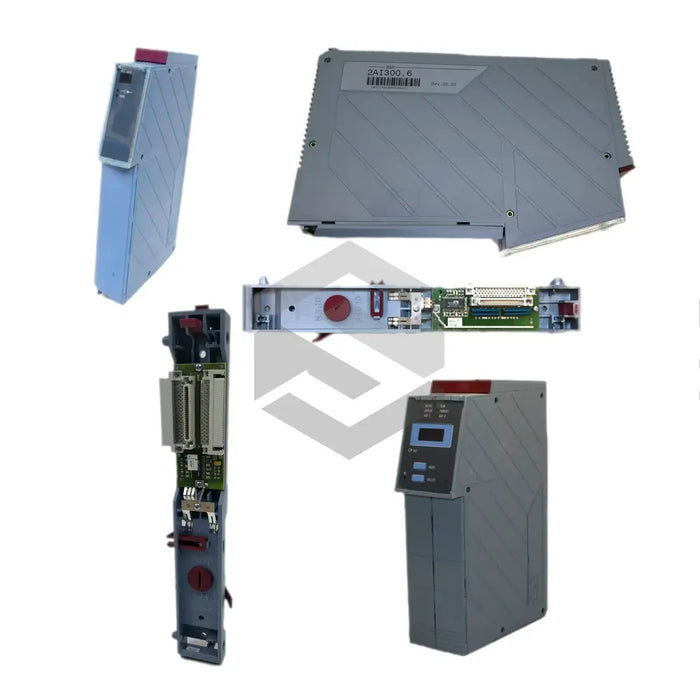

S image of 2ME903.99-110

2ME903.99-110

by B & R Automation
$1,200.43 - $1,200.43
$1,200.43
$1,200.43 - $1,200.43
$1,200.43

In Stock, Ships Fast

The B & R Automation 2ME903.99-110 is a high-performance industrial module engineered to boost processing and memory in complex automation systems. This versatile module is C-UL-US listed, confirming its compliance with industry safety standards. It supports expansion master functionality in two configurations and NC synchronization in one, offering flexible customization. The module processes instructions at 0.8 µsec, equipped with 64 KB Dual Ported RAM and 256 KB system RAM, and supports additional memory modules ME950, ME953, ME960, and ME963. It features a nonvolatile real-time clock and robust communication interfaces, including RS232 and RS485/RS422/TTY with maximum baud rates of 64 kBaud and 347 kBaud, respectively. User controls include a key switch, reset button, cold start button, and status LEDs. Data integrity is maintained with RAM buffering using lithium and NiCd batteries. Compactly designed with a 165 x 80 x 110 mm profile, it operates efficiently at -20°C to +60°C and 0-95% humidity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product Code

2ME903.99-110

Certification

C-UL-US listed

B&R ID Code

21

Instruction Cycle Time

0.8 usec

Dual Ported RAM

64 KB

System RAM

256 KB

Compatible Memory Modules

ME950, ME953, ME960, ME963

Real-time Clock Resolution

1 second

RS232 Baud Rate

64 kBaud

RS485/RS422/TTY Baud Rate

347 kBaud

Interface Connectors

9-pin D-type

Key Operational Features

Detachable key switch, reset button, cold start button, status display LEDs

RAM Buffering

Lithium battery, NiCd battery, gold leaf capacitor

Maximum Power Output

6 W

Storage Temperature Range

-20C to +60C

Relative Humidity

0 to 95% non-condensing

Dimensions

165 mm height, 80 mm width, 110 mm depth

Expansion Master Configurations

2 out of 3

NC Synchronization

1 configuration
