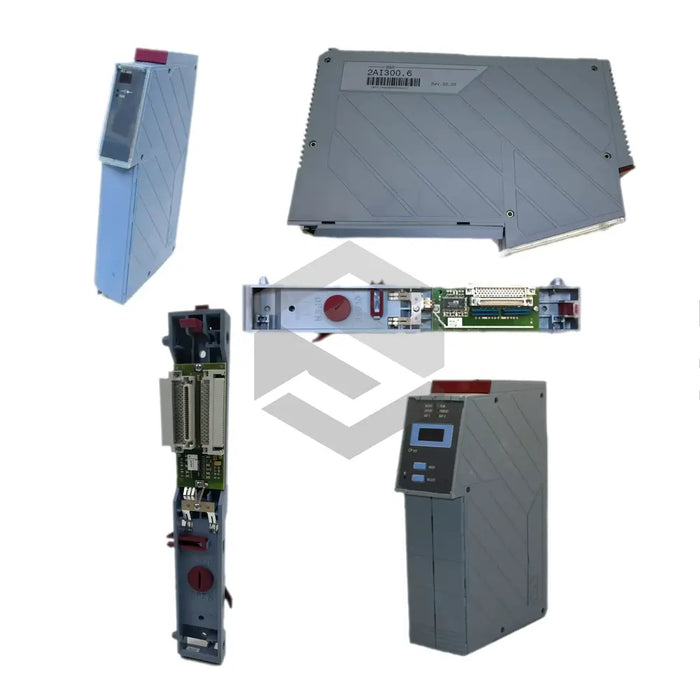

2NW100.50-1

Original price $1,232.22 - Original price $1,232.22
Original price
$1,232.22
$1,232.22 - $1,232.22
Current price $1,232.22

In Stock, Ships 1 - 3 Days

The B&R 2NW100.50-1 PROFIBUS Network Module by B & R Automation is a key component designed to integrate the B&R System 2010 with PROFIBUS networks, ensuring efficient and reliable communication in industrial automation settings. Released in 2010, it features two electrically isolated RS485 interfaces, each with a 9-pin D-type socket for secure cable connections. The module supports baud rates ranging from 9.6 kBit/sec to 500 kBit/sec, with varying maximum transmission distances. It operates using the token-passing principle in compliance with the DIN19245 parts 1 and 2 of the PROFIBUS master-slave protocol. Able to handle up to 127 stations, it employs shielded twisted pair cables in a bus topology. Diagnostic LEDs indicate status, while four switches allow configuration of addresses and baud rate. The module is compatible with BP101 or BP110 base plates, offering reduced power consumption and easy integration into existing systems. It measures 285 mm in height, 40 mm in width, and 185 mm in depth.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


B&R Automation

Product


2NW100.50-1 PROFIBUS Network Module

LaunchYear


2010

Interfaces


Two RS485 electrically isolated

ConnectorType


9-pin D-type socket

BaudRatesAndDistances


9.6 kBit/sec up to 1200 meters 19.2 kBit/sec up to 1200 meters 93.75 kBit/sec up to 1200 meters 187.5 kBit/sec up to 1000 meters 500 kBit/sec up to 400 meters

Protocol


DIN19245 part 1&2 PROFIBUS master-slave

Topology


Bus topology

MaxStations


127

DiagnosticIndicators


LEDs

ConfigurationSwitches


Four for module address station address and baud rate

Compatibility


BP101 or BP110 base plates

PowerConsumption


Maximum 15 watts with BP101 or BP110

Dimensions


Height 285 mm Width 40 mm Depth 185 mm
