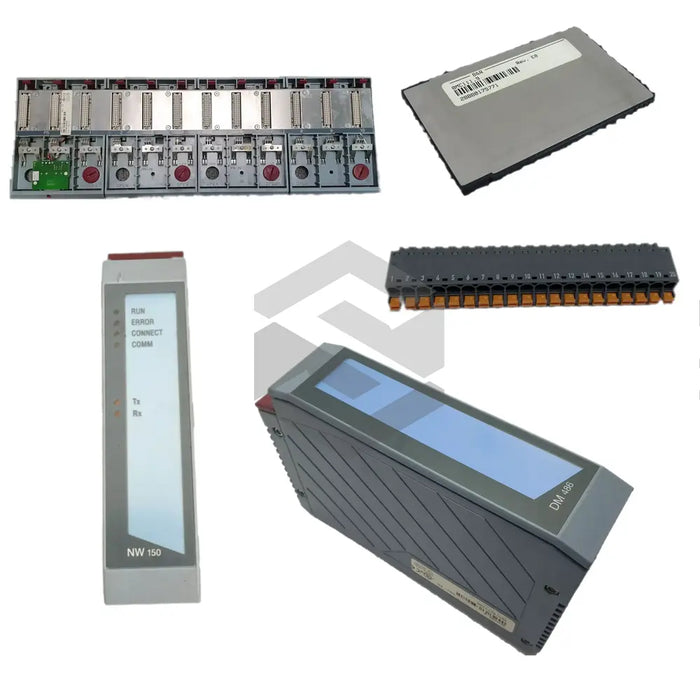

S image of 3NC150.6

3NC150.6

by B & R Automation
$2,836.69 - $4,467.75
$2,836.69
$2,836.69 - $4,467.75
$2,836.69
The 3NC150.6 I/O module from B & R Automation is designed for versatile industrial control applications, featuring two counter channels and two analog outputs. It supports multiple evaluation modes (1x, 2x, and 4x), accessible through nine-pin DSUB connectors, and configurable as incremental or up/down counters via software. The module operates with a total power requirement of 5.0 W, distributed between 1.5 W from a 5 VDC source and 3.5 W from a 24 VDC source. It offers electrical isolation between outputs and encoders/PLC, and accommodates symmetrical/asymmetrical encoder inputs with a maximum frequency of 100 kHz. The analog outputs have a ~10 V range, 12-bit resolution, and a conversion time of 35 microseconds, maintaining 0.5% accuracy under short-circuit conditions. Certified to CE and cULus standards (E115267), it withstands temperatures from 0°C to 60°C and relative humidity from 5% to 95%, with storage capability between -25°C and +70°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

3NC150.6

Type

I/O Module

Applications

Industrial Control

Power Consumption

5.0 W Total

Power Source 1

5 VDC, 1.5 W

Power Source 2

24 VDC, 3.5 W

Counter Channels

2

Analog Outputs

2

Diagnostic Capabilities

Compensating Current Monitoring, Software-Based LED Indication Homing

Electrical Isolation

Between Outputs and Encoders, Outputs and PLC

Certifications

CE, cULus (E115267)

Connector Type

Nine-Pin Female DSUB

Evaluation Modes

1x, 2x, 4x

Counter Channel Capacity

32 Bits

Input Frequency

Up to 100 kHz

External Power Supply Range

+5V to +30V DC

Analog Output Range

±10V

Digital Converter Resolution

12 Bits

Conversion Time

35 μs

Analog Accuracy

±0.5%

Operating Humidity

5% to 95% RH

Operating Temperature

0°C to 60°C

Storage Temperature

-25°C to 70°C

Configuration

Software-Based Modes for Incremental and Up/Down Counters

Encoder Input Setup

Symmetrical and Asymmetrical
