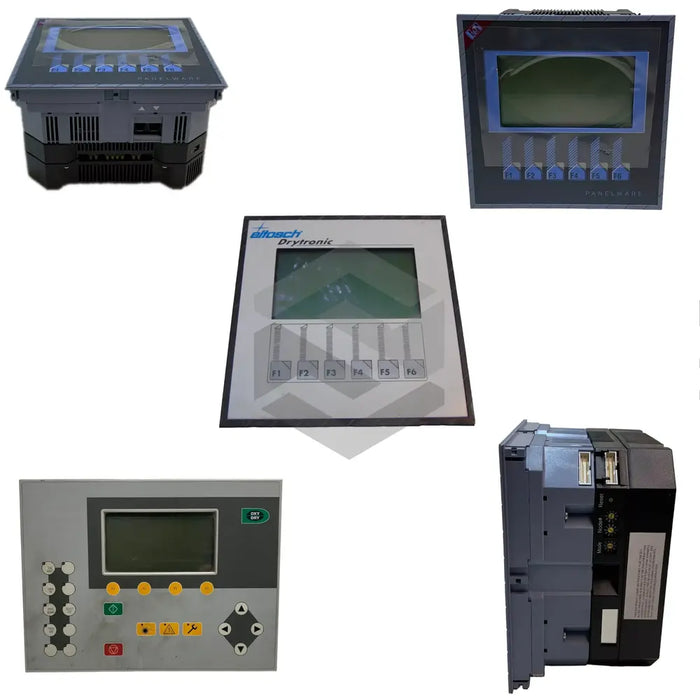

S image of 4D1164.00-590

4D1164.00-590

by B & R Automation
$3,749.78 - $3,749.78
$3,749.78
$3,749.78 - $3,749.78
$3,749.78

In Stock, Ships 1 - 3 Days

The 4D1164.00-590, produced by B & R Automation, is a robust LCD graphic display module designed for challenging industrial environments. Available in Blue (4D1164-00-090) and Black (4D1164-00-590), this high-resolution LCD can display 16 lines of text and detailed graphics at 128 x 240 pixels. Its visibility in low-light conditions is enhanced by a CFL backlight. Measuring 192 mm square and 62 mm deep, it's compact enough for seamless integration into various systems. It operates reliably from freezing to 50°C (32°F to 122°F) with 20-85% non-condensing humidity; storage conditions range from -20°C to 0°C with 20-90% humidity. Built for durability, it meets IEC60068 standards for shock and vibration resistance. With six keys and integrated LEDs, it facilitates user interaction. Operating on minimal power (135 mA), it is both energy-efficient and ideal for diverse industrial applications demanding reliability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Product

4D1164.00-590

Type

LCD Graphic Display Module

Versions

Blue (4D1164-00-090) and Black (4D1164-00-590)

Display Type

High-resolution LCD

Text Display

16 lines by 40 characters

Graphics Resolution

128 x 240 pixels

Backlighting

Miniature Fluorescent Lamp (CFL)

Dimensions

192 mm wide x 192 mm high x 62 mm deep

Operating Temperature Range

0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit)

Storage Temperature Range

-20 to 60 degrees Celsius

Operating Humidity

20% to 85% non-condensing

Storage Humidity

20% to 90% non-condensing

Shock Resistance

IEC60068_2_27 standard, 15g

Vibration Resistance

IEC60068_2_6 standard, 1g, 10-58 Hz, 0.075 mm displacement

User Interaction

6 keys with LEDs

Power Consumption

135 mA at 4 V DC
