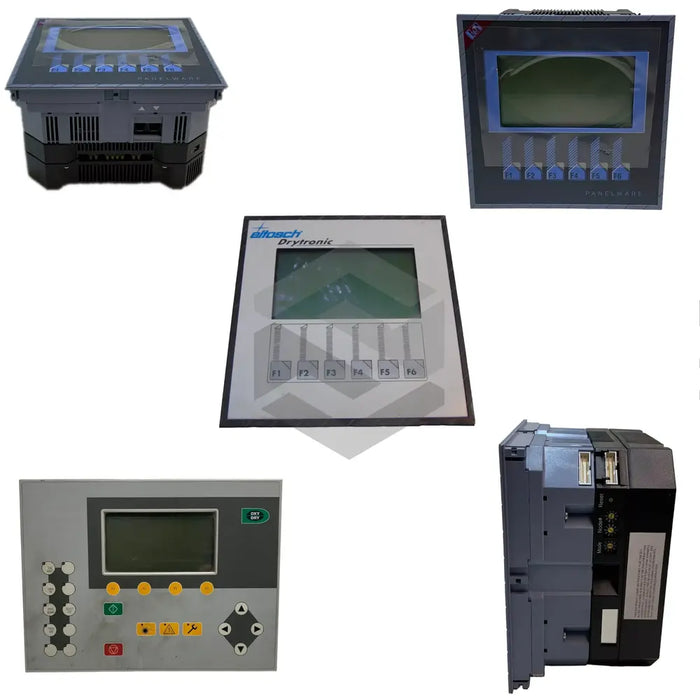

S image of 4D1166.00-490

4D1166.00-490

by B & R Automation
$2,443.03 - $6,424.11
$2,443.03
$2,443.03 - $6,424.11
$2,443.03

In Stock, Ships Fast

The 4D1166-00-490 is a robust LCD graphic display panel from B & R Automation, designed for demanding industrial applications. Its vertical orientation and durable build feature an IP65-rated aluminum front, protecting it from dust and low-pressure water jets. The display has a 128 x 240 pixel resolution and can show up to 16 lines of 40 characters in text mode, ensuring clear visual output. It includes a CFL backlight for visibility in low light and meets high shock (IEC 60068-2-27) and vibration (IEC 60068-2-6) resistance standards. The user interface comprises 16 function keys, a numeric keypad, 14 user buttons, and five cursor keys, all LED-equipped for status indication. It operates between 0°C to 50°C and stores between -20°C to 60°C, with a humidity tolerance of 20%-85% non-condensing during operation. Power consumption is efficient at 135mA at 24VDC, making it highly reliable in various harsh industrial settings.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

4D1166-00-490 LCD Graphic Display Panel

Manufacturer

B & R Automation

Resolution

128 x 240 pixels

Text Mode Capacity

16 lines x 40 characters

Background Light

CFL (Fluorescent Lamp)

Dimensions

214mm x 328mm x 38.6mm

Orientation

Vertical

Front Plate Material

Aluminum

IP Rating

IP65

Shock Resistance Standard

IEC60068-2-27

Vibration Resistance Standard

IEC60068-2-6

Temperature Range (Operating)

0°C to 50°C

Temperature Range (Storage)

-20°C to 60°C

Humidity (Operating)

20% to 85% non-condensing

Humidity (Storage)

20% to 90% non-condensing

Power Consumption

135mA at 24VDC

Function Keys

16 with LEDs

Numeric Keypad

12 Keys

User Buttons

14 with LEDs

Cursor Arrow Keys

5
